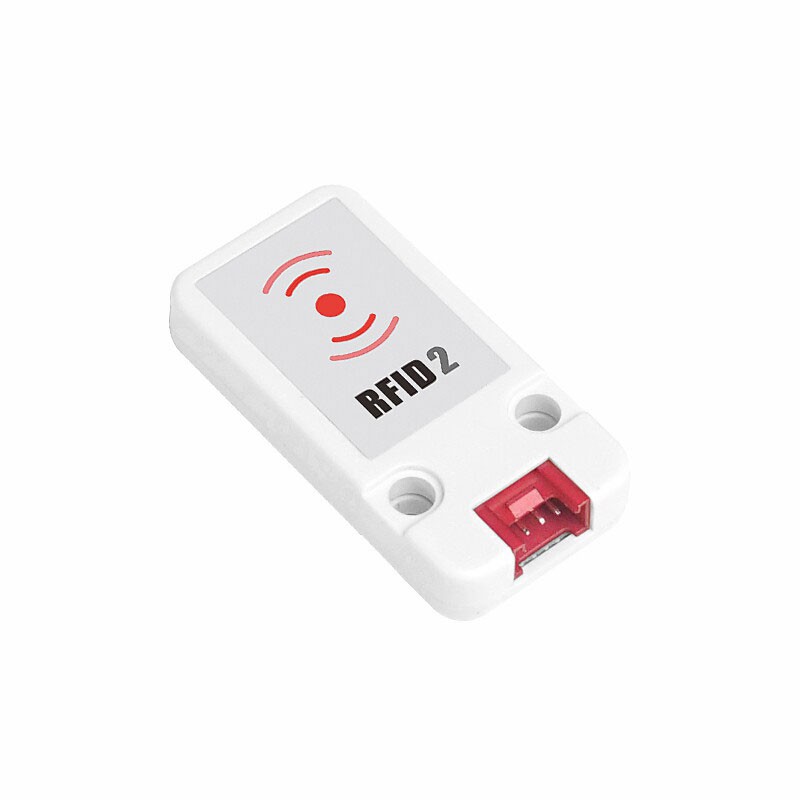

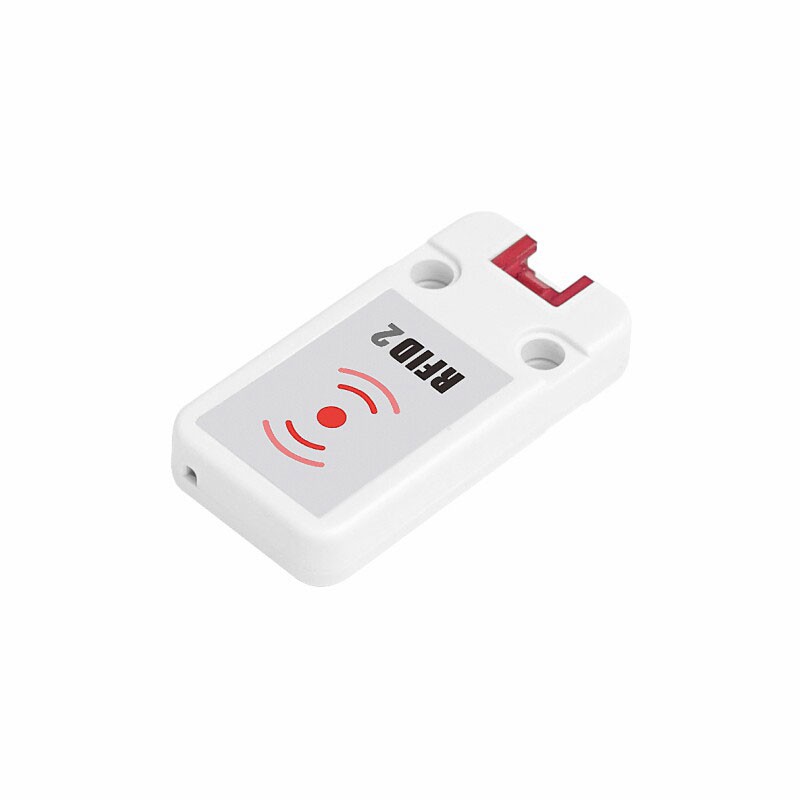

13.56MHz NFC/RFID Reader Module for Arduino & UIFlow

With robust support for ISO/IEC 14443 Type A/B, MIFARE, and NTAG protocols, the Unit RFID2 is highly versatile. It features an I2C interface (address: 0x28) with fast (400 Kbit/s) and high-speed (3400 Kbit/s) modes, making it easy to integrate with popular development platforms like Arduino and UIFlow (Blockly, Python). Additionally, it includes 2 LEGO-compatible holes for flexible prototyping. Ideal for Access Control, attendance systems, warehouse inventory, and vehicle management, it offers a reliable reading/writing distance of up to 20mm and data retention of over 10 years.

Features & Functions

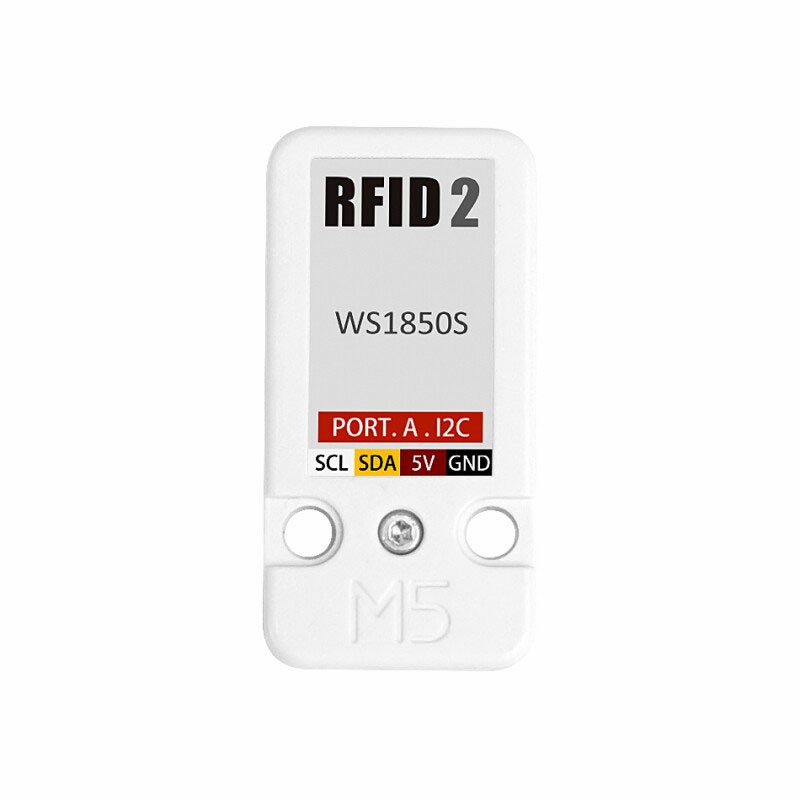

• Core Chip: Built-in WS1850S RFID Reader/writer IC.

• Operating Frequency: 13.56 MHz.

• Communication: I2C interface (Default Address: 0x28); Fast mode up to 400 Kbit/s; High-speed mode up to 3400 Kbit/s.

• Protocol Support: ISO/IEC 14443 Type A & B, MIFARE, and NTAG.

• Buffer: 64-byte transceiver buffer.

• Reading/Writing Distance: < 20mm (non-contact).

• Data Retention: > 10 years.

• Operating Temperature: -20°C to 85°C.

• Development Platforms: Fully compatible with Arduino and UIFlow (Blockly, Python).

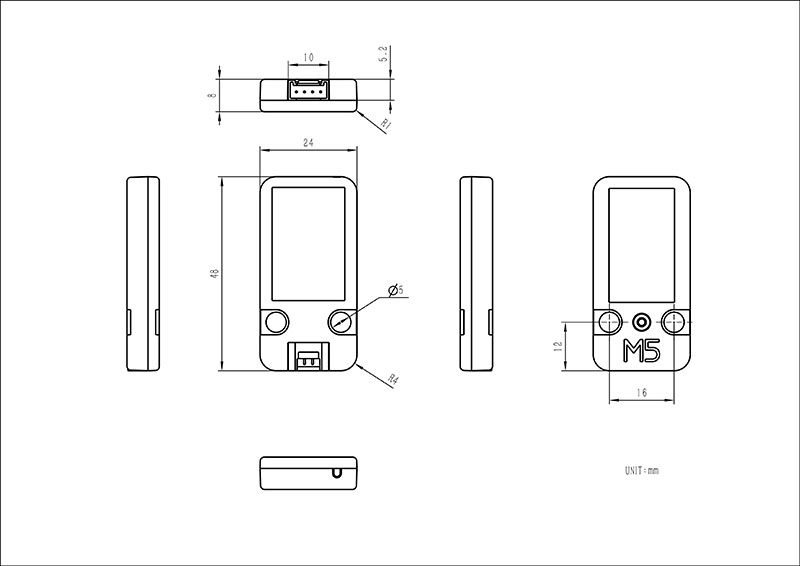

• Mechanical: Features 2 LEGO-compatible holes for easy assembly.

• Key Functions: Card reading/writing, identification, recording, RF card encoding, and authorization.

• Applications: Smart home access control, vehicle management, smart transportation, smart bookshelves, attendance tracking, and warehouse logistics.

Technical Specifications

Package List

• 1 x Unit RFID2

• 1 x HY2.0-4P Grove Connection Cable (20cm)
