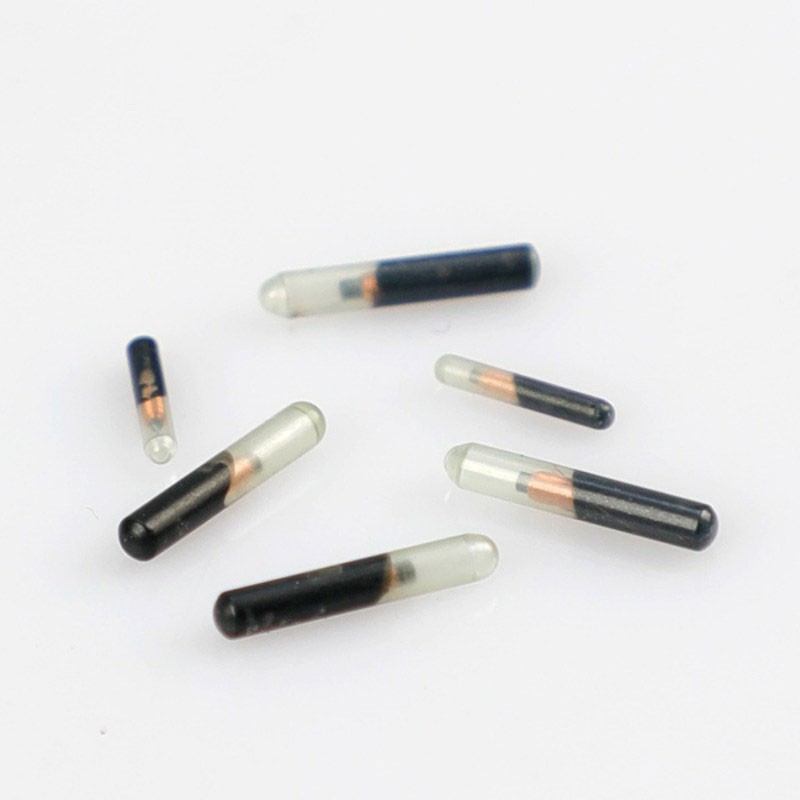

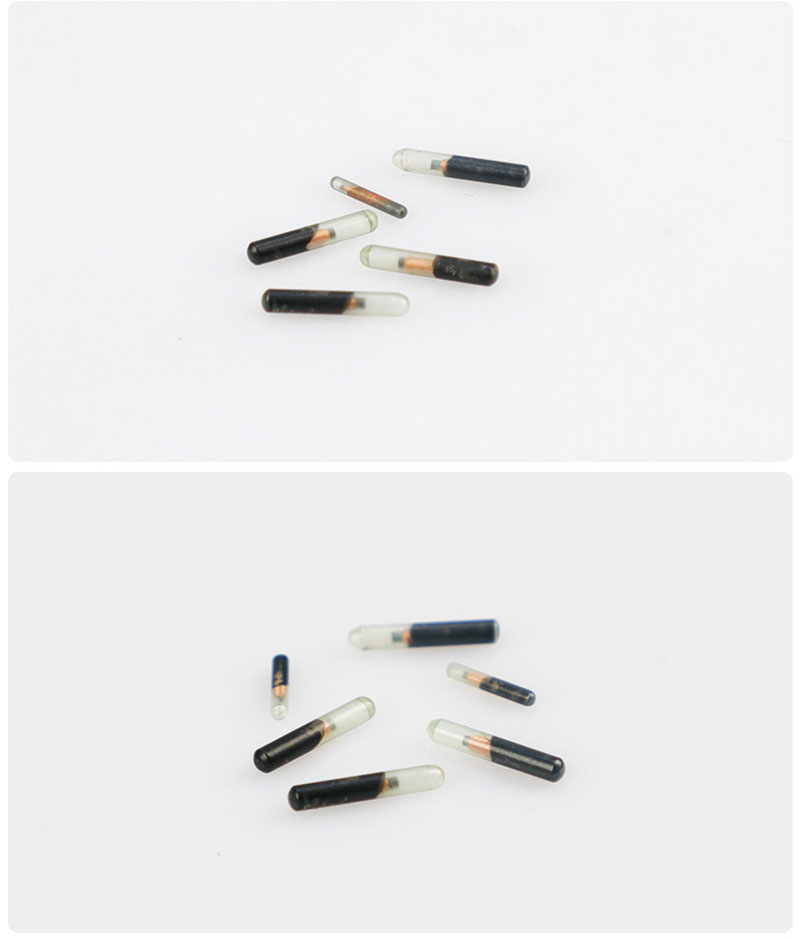

RFID Implantable Glass Tube Tag (134.2kHz FDX-B)

The RFID implantable glass tube tag is a compact, lightweight, and high-performance low-frequency (LF) electronic label. Operating at 134.2kHz and compliant with ISO11784/785 (FDX-B) standards, this microchip is designed for subcutaneous or intramuscular implantation. It provides a global unique ID for lifelong animal identification, tracking, and traceability across breeding, pet management, and wildlife conservation.

Key Features & Functions

Bioglass Encapsulation: Made with biomedical glass material featuring a bio-coating that prevents free migration and ensures zero rejection by the animal's body.
Ultra-Small & Lightweight: Miniature design (as small as 1.25×7mm, weighing only 0.02g) ensures easy implantation with minimal discomfort.
High Performance & Durability: Equipped with an EM4305 chip, offering a 15-digit unique code, rewritable capability, and a lifespan of >25 years.
Global Standard Compliance: Fully adheres to FDX-B (Full Duplex - B) protocol, ensuring universal readability with standard 134.2kHz scanners.
Anti-Replacement: Permanent implantation ensures secure identity binding, ideal for traceability and anti-counterfeiting.

3. Application Scenarios

Widely used in animal recognition, breeding management, and security:

Pets & Working Dogs: Dogs, cats, rabbits.
Livestock & Farming: Cattle, horses, sheep, pigs, pigeons.
Wildlife & Exotics: Lions, reptiles (lizards), rodents (mice), and rare species.
Aquaculture: Fish (e.g., Arowana) identification.
Other Uses: Sports timing, waste management (BDE), and reusable logistics packaging.

4. Product Parameters

Parameter	Specification
Chip Type	EM4305 (High Performance)
Working Frequency	134.2 kHz
Compliance Standard	ISO 11784 / 11785 (FDX-B)

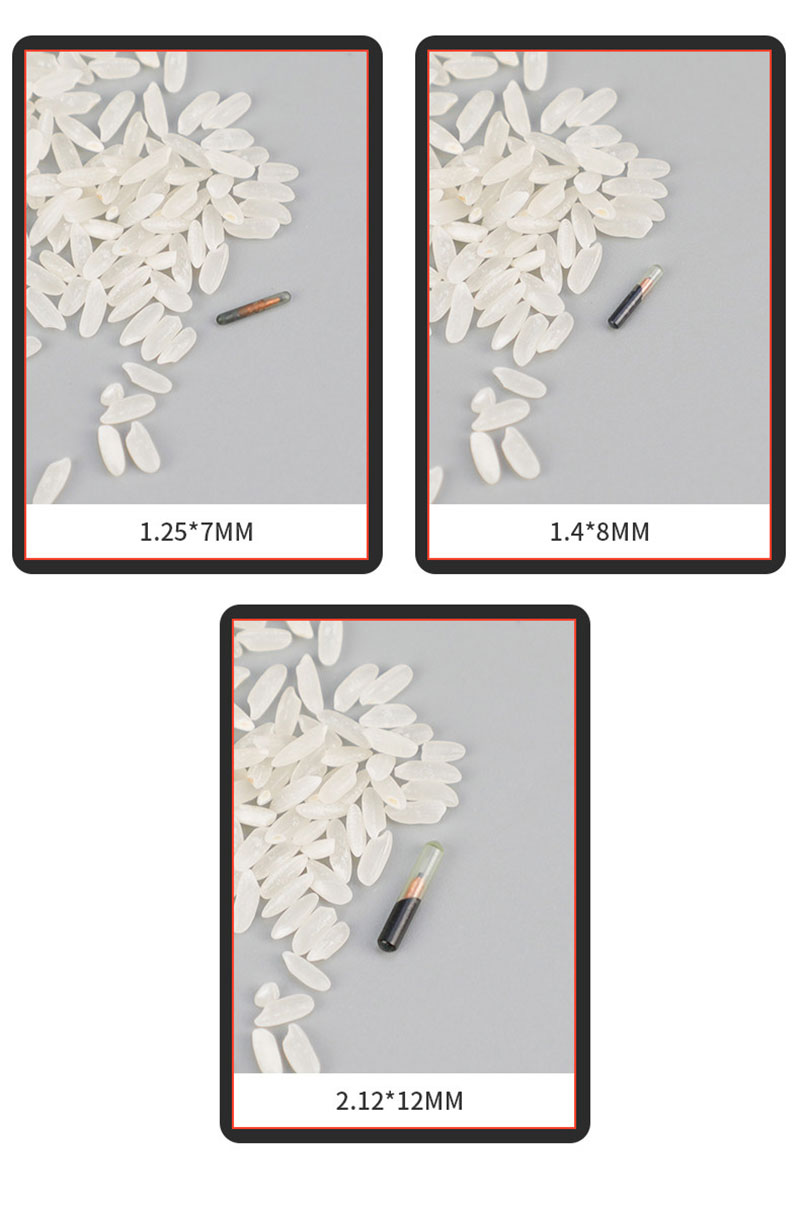

Available Sizes	1.25 × 7 mm / 1.4 × 8 mm / 2.12 × 12 mm
Chip Encoding	15-digit unique number
Read Distance	0 ~ 5 cm (depending on reader)
Material	Bioglass & Bio-coating cover
Single Weight	0.02 g
Lifespan	> 25 Years
Working Temp.	-20°C ~ +80°C
Storage Temp.	-40°C ~ +90°C

5. Product Description (For Catalog/Listing)

This RFID implantable animal microchip utilizes advanced EM4305 chip technology encapsulated in biocompatible glass. Available in three flexible sizes (1.25 * 7mm, 1.4 * 8mm, 2.12 * 12mm), it is perfectly suited for various animals from small pets to large livestock and aquatic life. The 134.2KHz FDX-B protocol ensures reliable data transmission and global standardization. With over 25 years of stability and zero tissue rejection, it is the ultimate solution for animal identity, breeding management, and full-life traceability.
