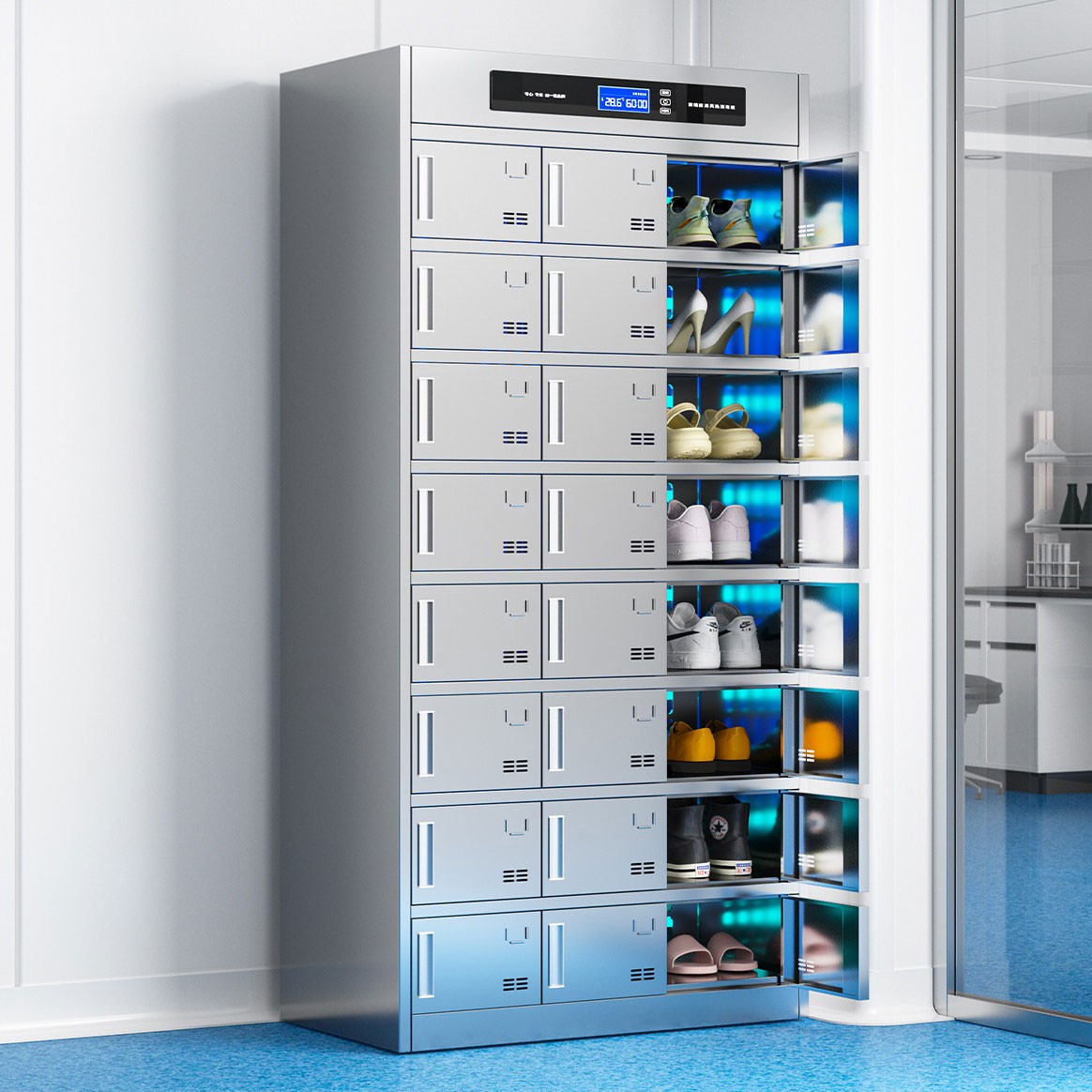

304 Stainless Steel Smart RFID Disinfection Shoe Cabinet - UHF RFID Tracking, Sterilization & Air Extraction for Cleanrooms

Designed for high-standard hygienic environments (food factories, pharmaceutical plants, hospitals, dust-free workshops), this smart shoe cabinet integrates robust 304 stainless steel construction with advanced multi-mode disinfection and cutting-edge UHF RFID technology. It features UV, ozone, and plasma sterilization alongside active air extraction for odor and moisture removal. The built-in RFID module supports EPC Global UHF Class 1 Gen 2 protocol, enabling intelligent footwear tracking, automated check-in/check-out, and sensor tag monitoring (temperature/humidity). With customizable layouts, HD LED control, and heavy-duty capacity, it ensures a hygienic, organized, and fully traceable storage solution.

Key Features

Multi-Mode Disinfection: Integrates UV, ozone (O₃), plasma, and hot air circulation for 99.99% bacteria elimination and fungus prevention.
UHF RFID Intelligence: Supports 840~868MHz (EU) / 902~928MHz (US) frequencies; reads passive/active tags up to 20M; supports EPC, TID, and USER inventory.
Sensor Tag Compatibility: Capable of reading temperature, humidity, and other sensor RFID tags for environmental monitoring.
Active Air Extraction: Top duct connection creates negative pressure airflow, penetrating shoe layers to remove odors, dust, and moisture.
Premium Material: Constructed from brushed 304 stainless steel; corrosion-resistant, wear-resistant, smooth, and easy to clean.
Smart Control Panel: HD LED display for precise timing, temperature setting, RF output up to 33dBm, and real-time status.
Flexible Interfaces: Supports USB, RS232, RS485, Wiegand, RJ45 (TCP/IP, UDP), with optional Bluetooth, WiFi, and PoE.
Large Capacity & Customizable: Wide/deep layer spacing fits high boots; supports custom drawings, combinations, and top-hole drilling (6mm-25mm).
Developer Friendly: Provides DEMO, SDK, and supports Windows, Android, C++, C#, JAVA development; IAP firmware upgrade supported.

Technical Parameters

Parameter	Specification
Product Name	Stainless Steel RFID Disinfection Shoe Cabinet
Main Material	304 Brushed Stainless Steel
Disinfection Tech	UV + Ozone + Plasma + Hot Air Drying + Ventilation
RFID Protocol	EPC Global UHF Class 1 Gen 2 / ISO18000-6C
RFID Frequency	EU 840~868MHz / US 902~928MHz (Customizable)
Reading Range	0~20M
RF Output Power	Up to 33dBm (FHSS / Fixed Frequency)
RFID Modes	Active, Passive, Triggered; Independent/Joint EPC, TID, USER
Interfaces	USB, RS232, RS485, Wiegand, RJ45, 4x SMA Antenna Ports
Optional Comms	Bluetooth, WiFi, PoE
Power Supply	+12V DC (Low power consumption)
Control System	HD LED Display (Timing & Temperature Adjustable)
Ventilation	Top pipe linkage (Customer prepares duct), Negative pressure
Capacity	Multi-grid, customizable layers (fits all shoe types)
Dev Support	DEMO & SDK provided (Windows, Android, C++, C#, JAVA)
Application	Food Factory, Pharma, Hospital, Electronics, Cleanroom
Customization	Drawings, sizes, hole diameters (6/12/18/25mm), combinations

Application Scenarios

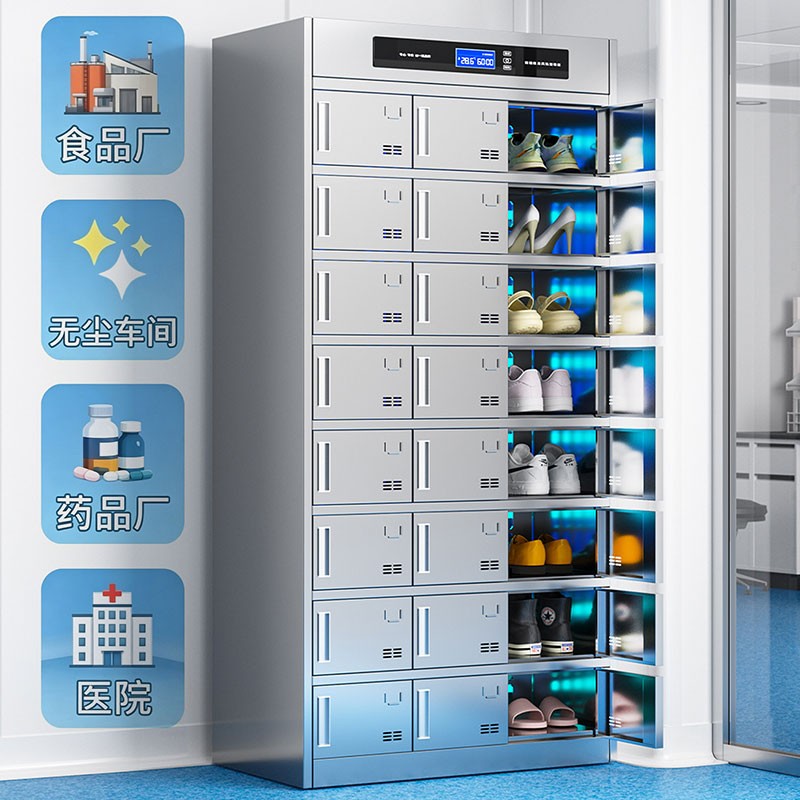

Ideal for industries requiring strict hygiene and Asset tracking: Food Processing Plants, Pharmaceutical Laboratories, Hospitals/Clinics, Dust-Free Workshops, and Electronics Factories. Ensures employee footwear is sterilized, deodorized, and dried while enabling automated RFID tracking and access management.

Note

The Store provides free top-hole drilling, but customers need to prepare the connecting duct/pipeline for the top exhaust system. RFID Antenna placement can be customized based on site requirements.
