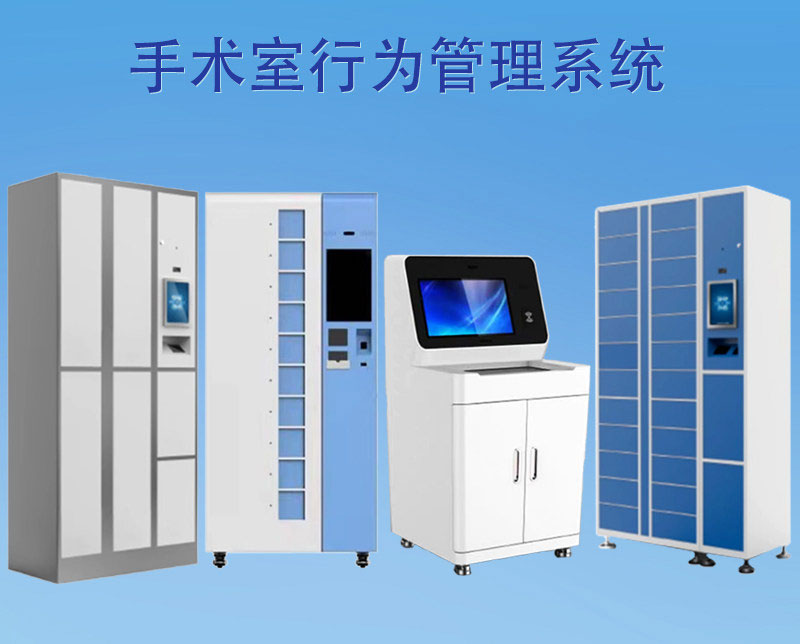

RFID operating room behavior management system, RFID self-service shoe cabinet for dispensing and recycling surgical gowns and shoes, RFID smart changing machine all-in-one machine.

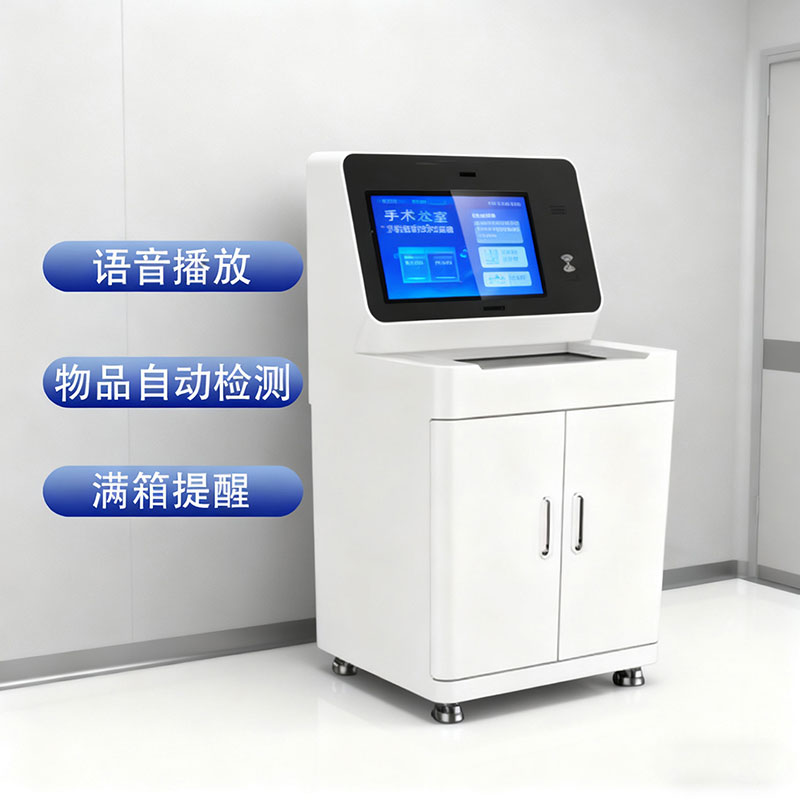

RFID Smart recycling machine

Capacity: 60 sets

Outer Frame Dimensions: 800mm (W) * 800mm (D) * 1580mm (H)

Inner Frame Dimensions: 760mm (W) * 800mm (D) * 790mm (H)

Display: Supports 21.5-inch LCD screen, 1920*1080 resolution

Reading Modules: UHF RFID, fingerprint recognition, IC card reader, or facial recognition

Operating System: Android 5.1.1/Windows 10

Input Power: AC220V, plug with leakage protection

Supported Functions: Voice playback, automatic item detection, full-box reminder.

Function Introduction: Utilizes a 21.5-inch touchscreen and an Android/Windows system. Automatically recycles used surgical gowns and shoes. After authorization, the gown or shoes are placed on the equipment platform. The system detects the item and activates the automation device, opening the platform's telescopic panel, causing the item to fall into the cabinet. The system sends the detection data to the backend. When the number of items in the cabinet exceeds the set warning line, the system prompts for item removal and stops recycling.

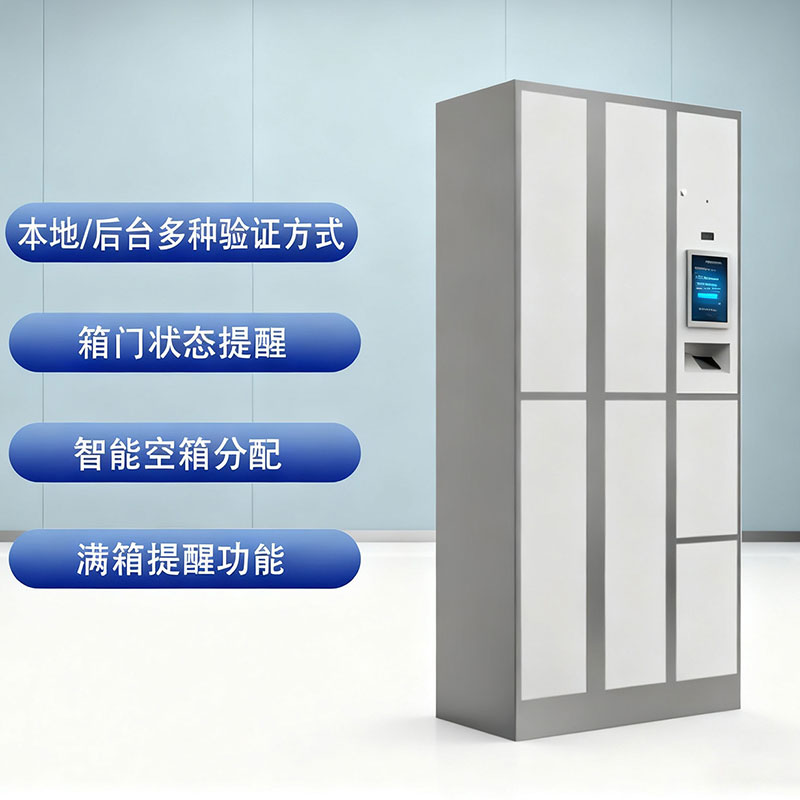

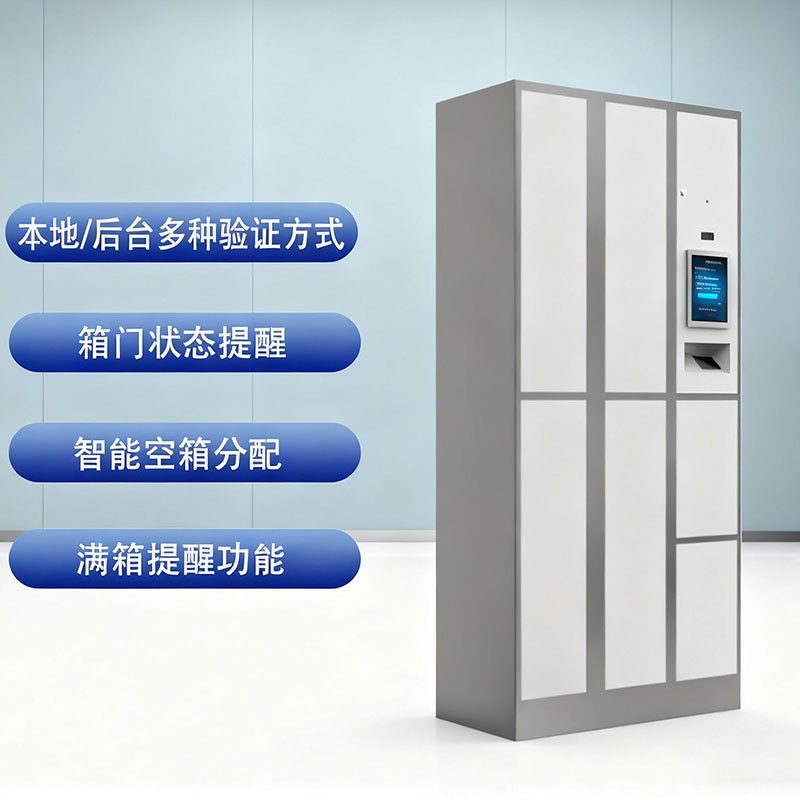

Intelligent Locker

Overall Dimensions:

Main Unit: 430mm (W) * 450mm (D) * 1800mm (H)

Auxiliary Unit: 750mm (W) * 450mm (D) * 1800mm (H)

Cabinet: Made of high-quality cold-rolled steel plate; 1.0mm thickness; surface treated with rust removal, degreasing, phosphating, electrophoresis, and then electrostatic powder coating. All welded parts use full-welding technology. Solid and sturdy, designed for a 10-year lifespan.

Cabinet Door: Made of high-quality cold-rolled steel plate; 1.0mm thickness; surface treated with rust removal, degreasing, grinding, phosphating, electrophoresis, and then electrostatic powder coating. The back of the door has reinforcing ribs to prevent deformation under external forces.

Electronic Lock: Uses a patented self-made electronic lock with anti-jamming design, intelligent door status recognition, and a failure rate of one in a million.

Features: It adopts a 10-inch touch screen and Android 5.1 system, and supports three recognition methods such as card swiping, face recognition and fingerprint recognition for permission verification. It can realize multiple verification methods in local/background, door status reminder, intelligent empty box allocation, full box reminder function, and the cabinet has a clothes hanging rod and partition design, which is simple, beautiful and hygienic.

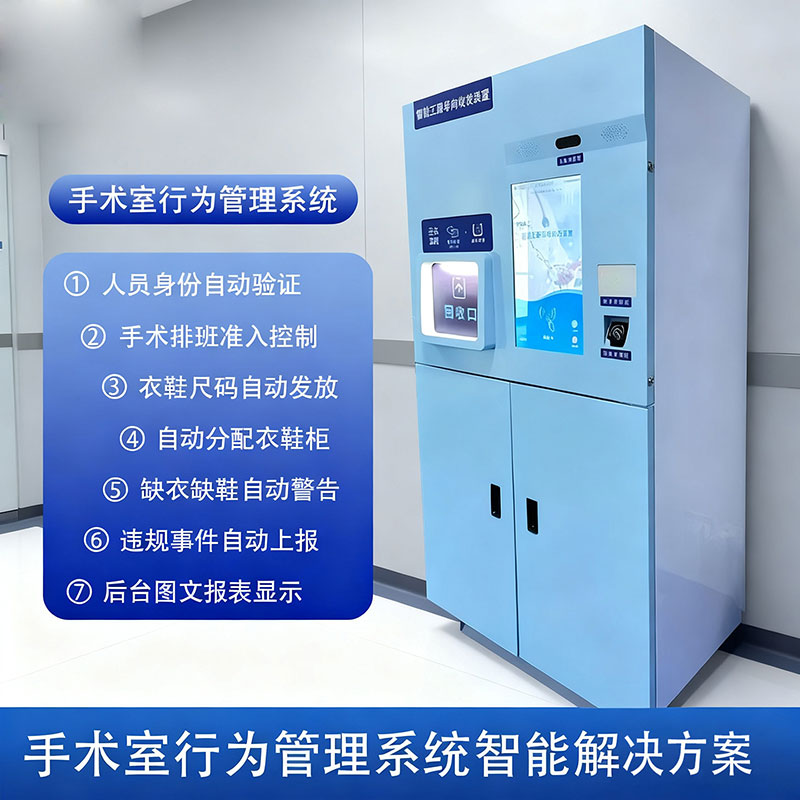

Intelligent Clothing Dispenser

Storage Capacity: 200 sets

Equipment Dimensions:

Overall Dimensions: 880mm (W) * 970mm (D) * 1956mm (H)

Compartment Dimensions: 280mm (W) * 133mm (D) * 162mm (H)

Power Supply: ≤500WV 1220V ±5%, 50/60HZ

Human Infrared Sensor: Maximum distance 50cm

Working Mode: Rotary, multi-layer compartment loading/unloading

Working Environment: Operating Temperature: 0°C~40°C; Relative Humidity: 20~80% (non-condensing)

Identification Methods: Supports facial recognition, fingerprint recognition, IC card recognition, and RFID Card recognition

Equipment Introduction: The intelligent clothing dispenser mainly consists of a 15.6-inch touchscreen display... The equipment consists of control units including a display screen, fingerprint scanner, facial recognition module, card reader, and rotary motor. It can interface with the customer's fabric management system for efficient garment distribution management.

Features: Double-layered indicator lights for easy retrieval and loading; supports automatic inventory management, with options for full or column-based inventory checks for accurate inventory information; automatic door opening and closing with a double anti-pinch design for safety and reliability; uses a mirror-reflective inventory sensor for stable and easy maintenance; a safety light curtain and automatic control system provide safety protection for operators and equipment; uses imported bearings, an integrated central shaft, and a planetary geared motor for long life and low noise; the machine is detachable for easy disassembly and transport in confined spaces.

Intelligent Shoe Dispensing Machine

Shoe Storage Capacity: 120 sets

Equipment Dimensions:

Overall Dimensions: 1090mm (W) * 1000mm (D) * 1956mm (H)

Compartment Size 1: 152mm (W) * 335mm (D) * 224mm (H)

Compartment Size 2: 152mm (W) * 335mm (D) * 243mm (H)

Power Supply: 500W 220V ±5%, 50/60Hz

Human Infrared Sensor: Maximum distance 50cm

Working Mode: Rotary, multi-layer compartment loading/unloading system

Working Environment: Operating Temperature: 0°C~40°C; Relative Humidity: 20~80% (non-condensing)

Identification Methods: Supports facial recognition, fingerprint recognition, IC card recognition, and RFID card recognition

Equipment Introduction: The intelligent shoe dispensing machine mainly consists of a 15.6-inch touchscreen display, fingerprint scanner, facial recognition module, card reader, rotary motor, and other control units. The equipment can interface with the customer's fabric management system to achieve efficient management of shoe dispensing.

Features: Double-layer indicator lights for easy retrieval and loading; supports automatic inventory management, with options for full or column inventory to accurately track stock levels; automatic door opening and closing with a double anti-pinch design for safety and reliability; uses mirror-reflective inventory sensors for stability, reliability, and easy maintenance; safety light curtain and automatic control system provide safety protection for operators and equipment; uses imported bearings, an integrated central shaft, and a planetary geared motor for long lifespan and low noise; detachable design for easy disassembly and handling in smaller spaces.
