RFID smart consumable cabinet for automatic inventory management, unattended high-value consumables management, and integration with medical management systems.

RFID smart consumable cabinet for automatic inventory management, unattended high-value consumables management, and integration with medical management systems.

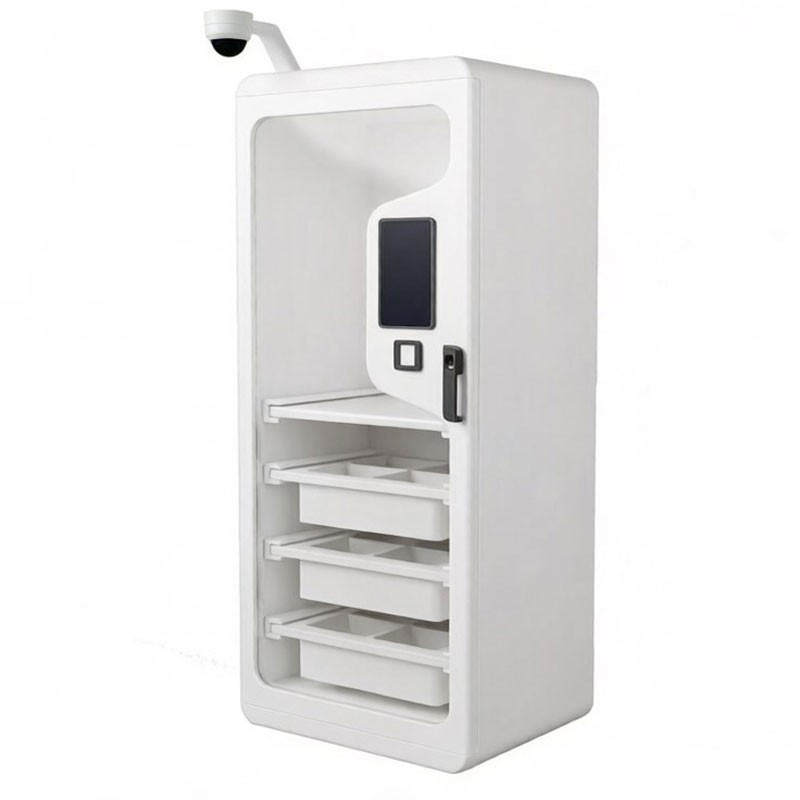

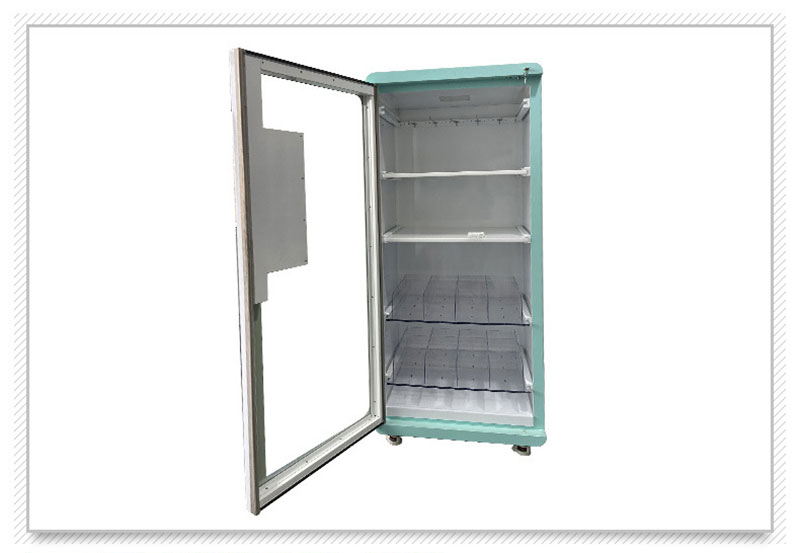

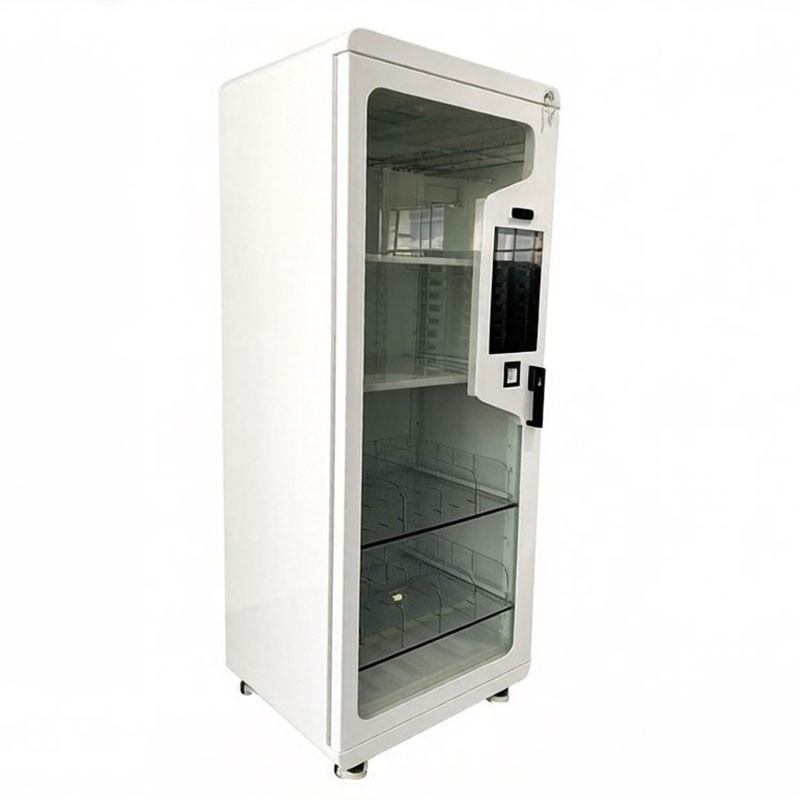

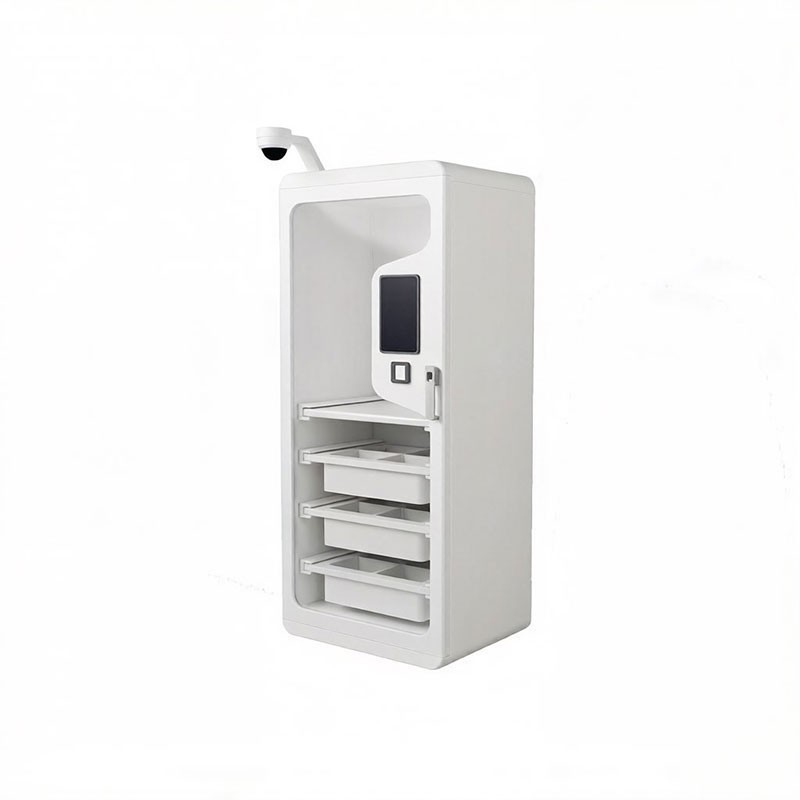

The Smart RFID Consumables Management Cabinet is an unmanned, automated consumables management solution designed for medical facilities, laboratories, and similar environments. It integrates core technologies such as Face Recognition (with liveness detection), RFID identification, electronic weighing, local data storage, and electrostatic spray painting. This system enables intelligent, full lifecycle management of consumables, from storage and checkout to return and inventory.

YouTube

Parameter List:

Category	Parameter	Details
Core Configuration	Screen	14-inch capacitive touch screen, 1920×1080 resolution, 16:9 aspect ratio, customizable
	Operating System	Windows 10/Android 7.2
	Industrial Control	Option 1: I5 4th Gen, 8GB+128GB (Dual LAN) / Option 2: RK3399, 4GB+32GB
	Personnel Access	Standard: Dual-lens camera (liveness detection), card swiping/fingerprint optional; Supports face recognition for up to 1000 operators
Recognition & Security	Identification Methods	Face recognition (liveness detection) + card + fingerprint (optional)
	Security Feature	Surveillance camera (standard), prevents photo/video identity spoofing
	Data Storage	Local storage, supports query of personnel, time, borrowing/returning records
Cabinet Craftsmanship	Surface Finish	Electrostatic spray painting, uniform coating, strong adhesion, high oxidation resistance
	Cabinet Material	1.2mm carbon steel sheet (customizable), PP material fireproof & anti-corrosion (optional)
	Internal Structure	4 tiers (customizable), with drawer/shelf design
	Mounting/Mobility	4 casters
Dimensions & Load	Overall Dimensions	960mm(L) × 550mm(W) × 1984mm(H), customizable
	Load-bearing Method	Built-in weighing module, range/precision options: 1g-3kg, 1g-5kg, 1g-10kg, 1g-30kg, 1g-50kg (1g precision)
Environmental Specs	Operating Temperature	-20℃ ~ +60℃
	Storage Temperature	-25℃ ~ +70℃
	Storage Humidity	25% ~ 50%
	Fire Resistance	PP material cabinet with fireproof design, internal anti-corrosion design
	Leakage Handling	Built-in leakage trough, easy to disassemble and clean
	Ventilation	Independent exhaust port, can be connected to external pipes
Communication & Power	Main-Sub Cabinet Cascading	Via LAN port (master-slave cascade)
	Master Cabinet I/O	Standard: LAN port, USB port; Optional: WiFi, 4G
	Power Supply	AC220V, 50Hz
	Total Power Consumption	≤150W

Functional Description:

Multi-modal Identity Authentication: Utilizes a dual-lens camera with facial recognition (supports a database of up to 1000 operators) to perform liveness detection. Combined with optional card or fingerprint access, it effectively prevents identity spoofing via photos or videos, ensuring secure and controlled operation.
Precision Consumables Management: Features a built-in high-precision weighing module (range options: 1g-50kg, 1g precision) to automatically log weight changes. RFID technology (ISO18000-6C protocol) enables fast multi-tag reading, with inventory counting completed in ≤5 seconds, achieving fully digitalized tracking of the entire "check-out/check-in" process.
Secure Storage & Environmental Compatibility: The cabinet employs an electrostatic spray painting finish (uniform coating, oxidation-resistant) and is constructed with optional PP material for fireproofing and corrosion resistance. Its built-in leakage trough and independent exhaust port make it suitable for the temperature/humidity ranges (-20℃~+60℃ operating, -25℃~+70℃ storage) and safety requirements of labs and medical environments.
Localized Data Management: Supports local storage of all operation logs (personnel, timestamp, borrowing/returning details), allowing for offline query and traceability to ensure data security. The master cabinet supports LAN port cascading for expansion and offers optional WiFi/4G connectivity for seamless integration with Hospital or laboratory management systems.
Flexible Customization & User-Friendly Design: Cabinet dimensions, number of tiers, and color are customizable. The 4-tier internal shelf/drawer structure accommodates various consumable types. Four casters allow for easy mobility and stable placement, meeting deployment needs across different scenarios.
