This series of industrial high-frequency RFID readers is engineered for robust performance in demanding automation environments. Featuring a compact, potted design that withstands dust, moisture, and vibration, they are ideal for integration into assembly lines, workstations, and material handling systems. Operating at 13.56 MHz with ISO15693 protocol support, they ensure reliable communication with a wide range of tags. The standout feature is their highly flexible dual-role Modbus RTU communication, allowing each unit to be configured as either a Master (to proactively write data to PLC registers) or a Slave (to provide data on request). With configurable read modes, trigger outputs, and industrial-grade protection, this series offers a versatile and durable solution for precise data capture and control in Industry 4.0 applications.

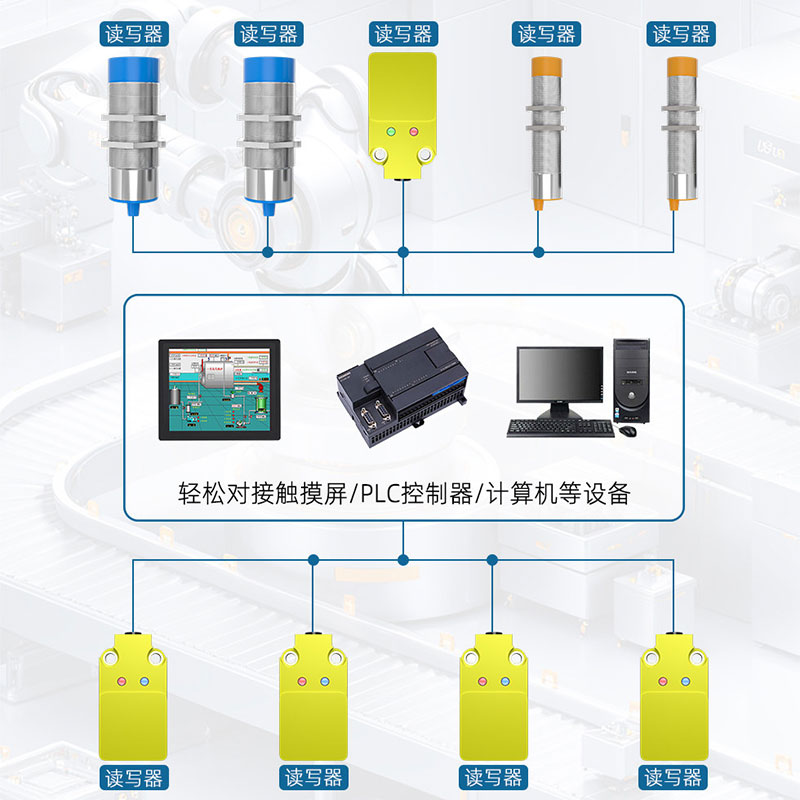

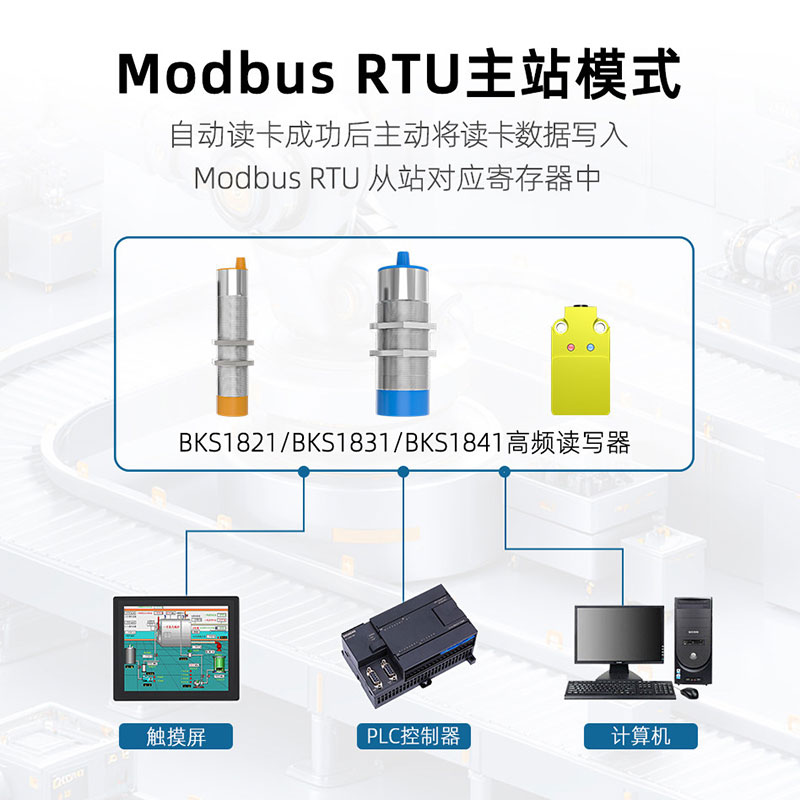

Flexible Dual-Mode modbus RTU: Each reader can be configured as a Modbus RTU Master to automatically write tag data to connected slave devices (e.g., PLCs), or as a Modbus RTU Slave to be polled by a host controller, providing exceptional integration versatility.

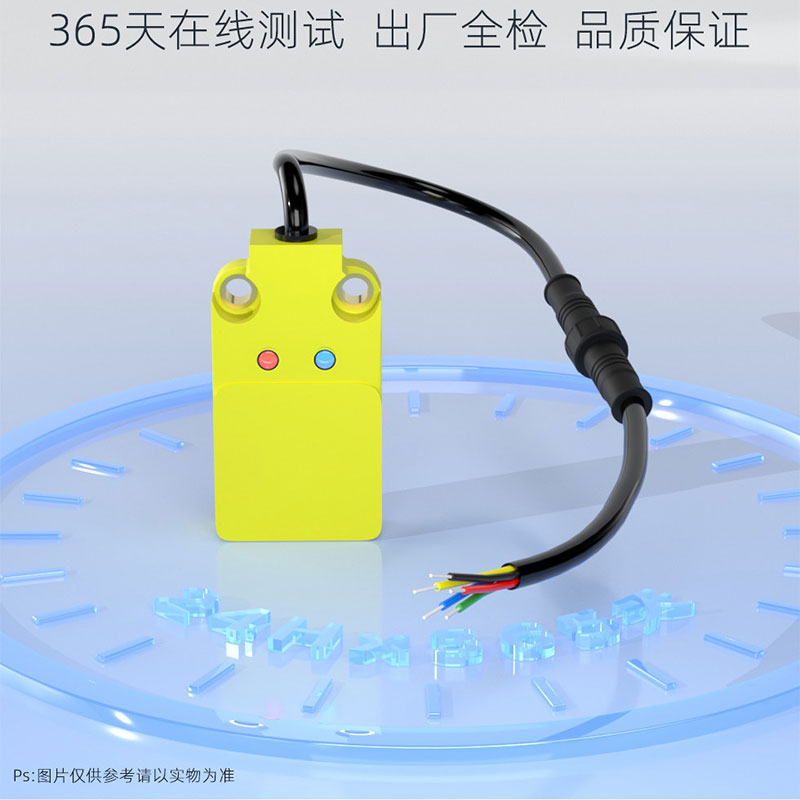

Rugged Industrial Construction: The compact housing is fully potted, offering excellent resistance to dust, water, and physical shock. The design includes ESD and surge protection on power and communication lines for reliable operation in harsh electrical environments.

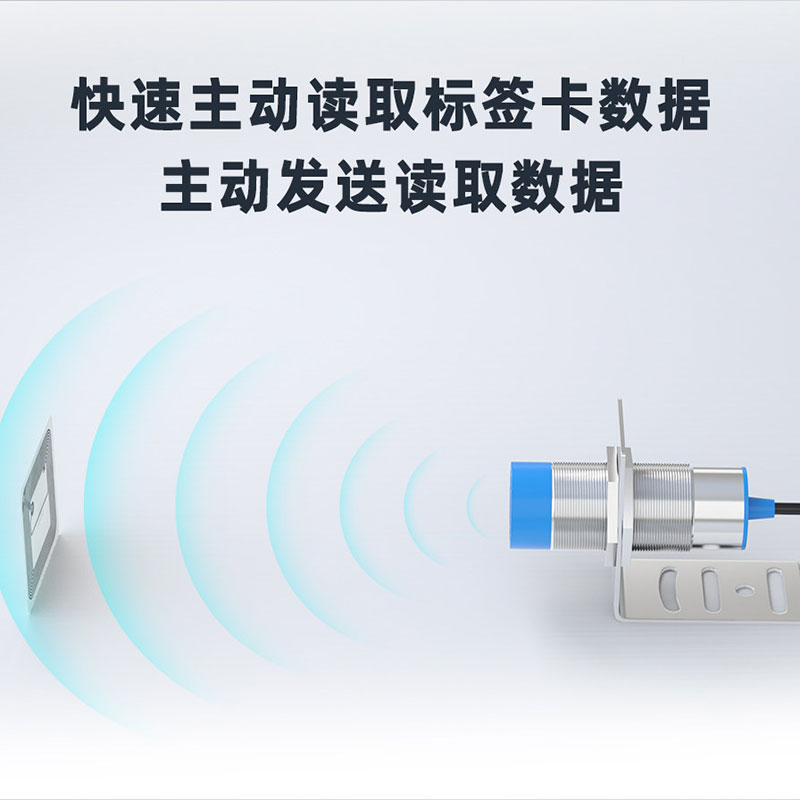

High-Speed & Configurable Reading: Supports automatic reading of tag IDs, data blocks, or both at speeds up to 50 reads per second. Provides a programmable trigger signal (configurable high/low level) upon successful read to synchronize with external machinery.
Broad Tag Compatibility & Efficient Data Handling: Compatible with standard ISO15693 tags (e.g., Fujitsu, ICODE). Supports efficient block data read/write operations, handling up to 48 bytes per transaction for streamlined data management.

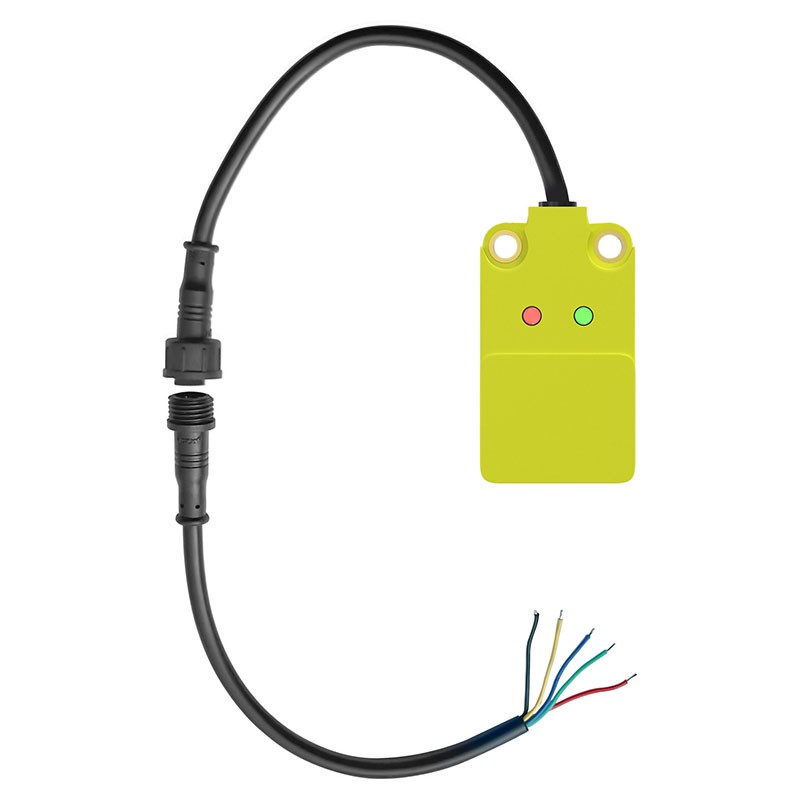

Easy Integration & Setup: Features a standard industrial 5-pin connector. Communication settings (baud rate, parity) are easily configurable, and the device supports both RS-232 and RS-485 interfaces.
Category | Specification / Model Variant |
|---|---|
Product Series | Compact Cylinder Series |

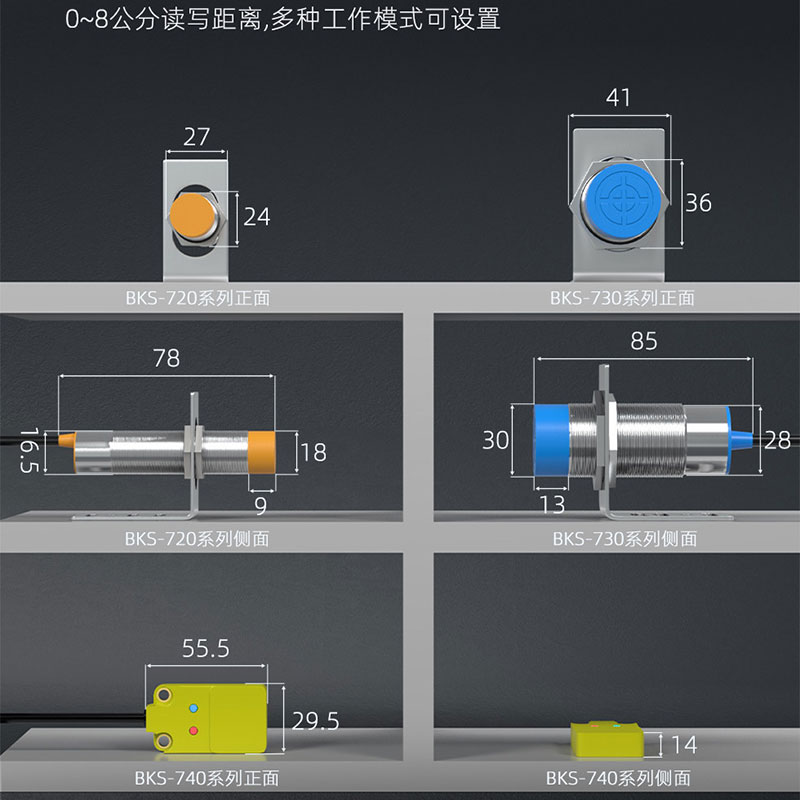

Dimensions (H x W x D) | 18 x 18 x 78 mm |
Typical Read Distance | 0 ~ 6 cm |
LED Indicator | 1 x Blue |
RF Specifications | Frequency: 13.56 MHz |
Communication | Protocol: Modbus RTU (Configurable as Master or Slave) |
Power Supply | Input Voltage: DC 7 ~ 28V |
Environmental Rating | Operating Temperature: -30°C ~ +80°C |
Key Functions | Automatic read of Tag ID / Data Block / Both; Command-based read/write; Customizable features available. |
Trigger Output | Configurable high/low level signal upon successful read; Output pulse width is adjustable. |
