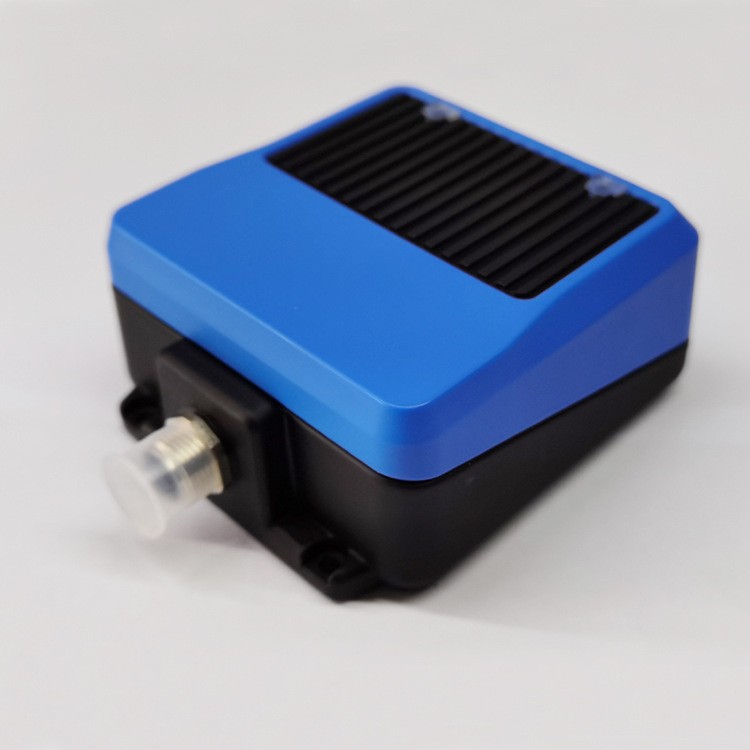

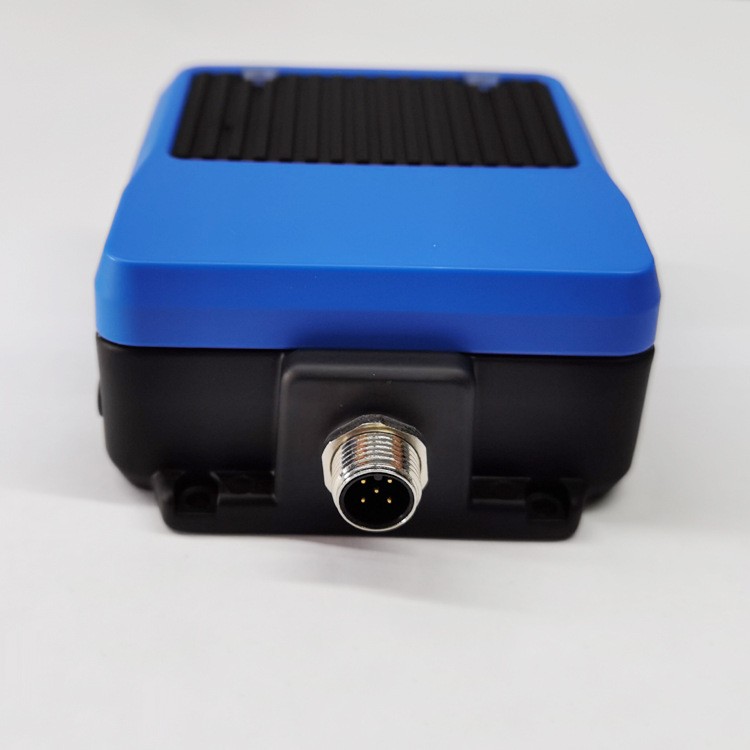

Industrial UHF RFID Reader Writer EtherNet IP PoE Read Head Long Range 2M IP67920-925MHz
It is an integrated UHF RFID read/write head designed for industrial automation environments. It supports the EtherNet/IP communication protocol and can be powered via PoE (Power over Ethernet) or 24V DC. Operating in the frequency range of 920MHz to 925MHz, it complies with EPC Global Class 1 Gen 2 / ISO 18000-6C standards.
With a maximum output power of 26dBm and a read range of up to 2000mm (depending on tag performance and environment), this device delivers fast and accurate identification. Its rugged aluminum alloy + ABS housing and IP67 protection rating make it suitable for harsh industrial settings such as automotive assembly lines, semiconductor fabs, lithium battery production lines, and AGV tray management.
The built-in RF section simplifies integration: users only need to connect via Ethernet to receive tag data without needing to understand complex RF protocols.

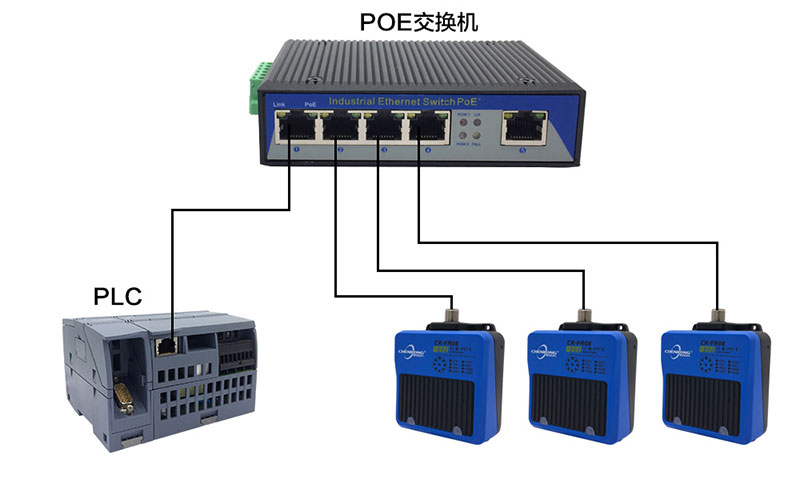

Communication Protocol: EtherNet/IP for seamless PLC integration
Power Supply: PoE (46–54V) or 24V DC
Read Range: Up to 2 meters (depends on tag and environment)
Frequency: 902–928 MHz (US standard)
Standards: EPC Global Class 1 Gen 2 / ISO 18000-6C
Max Tag Capacity: 2K Bytes
Protection: Reverse polarity protection, IP67 rated

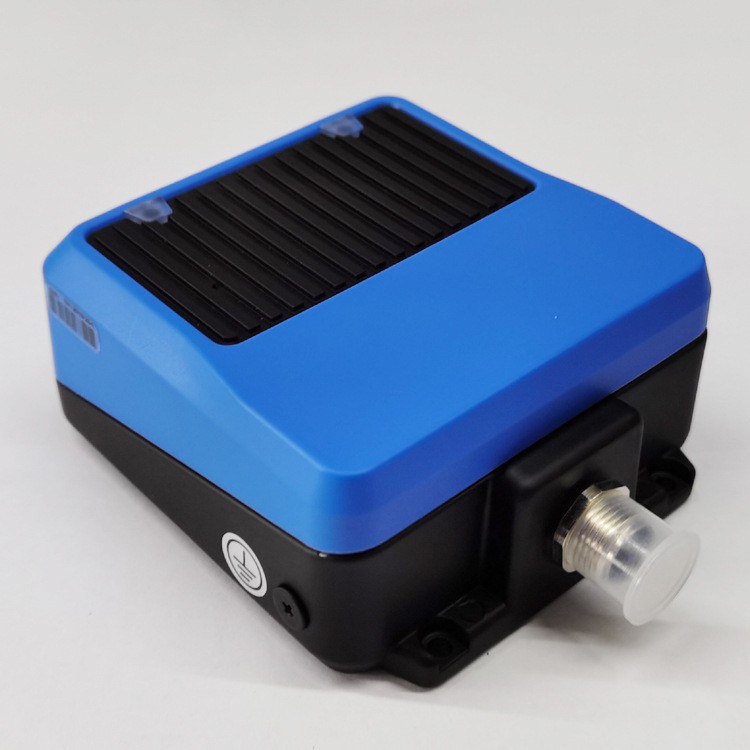

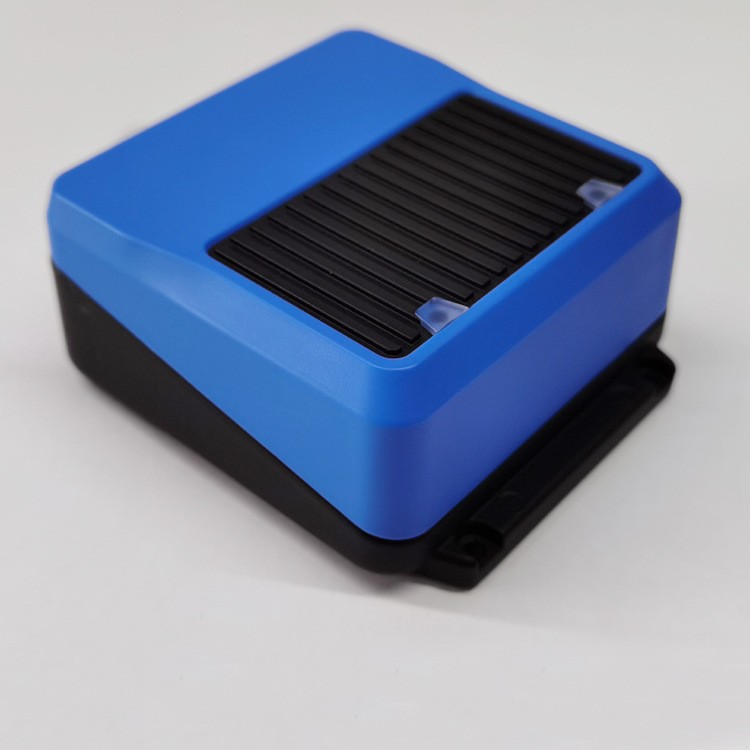

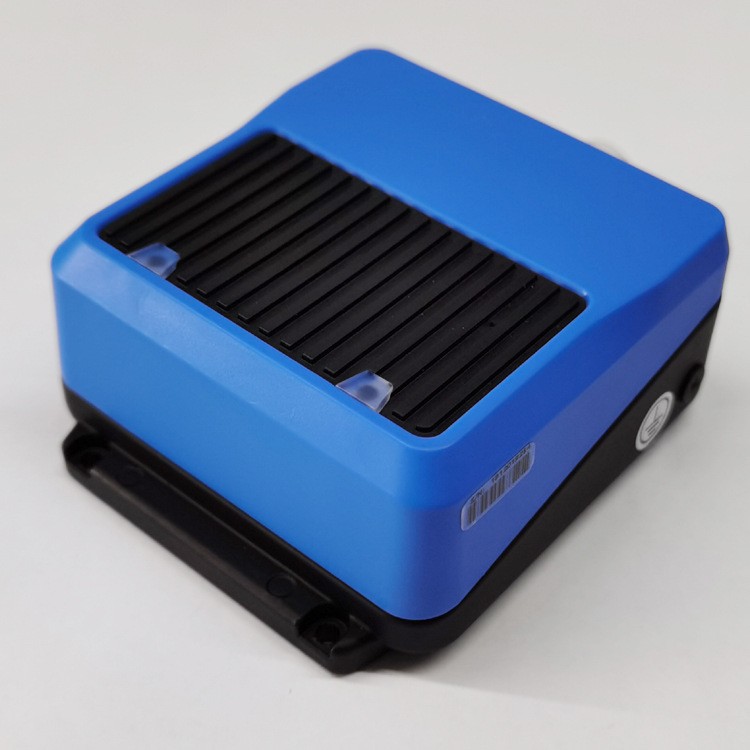

Material: Aluminum alloy + ABS
Operating Temperature: -25°C to +70°C
Weight: 230g
Drop Test: 1.2m free fall
ESD Protection: Air discharge ±15kV, contact discharge ±8kV
Parameter | Value |
|---|---|
Operating Temperature | -25°C ~ +70°C |
Storage Temperature | -40°C ~ +85°C |
Humidity | 10% ~ 90% non-condensing |
Weight | 230g |
Drop Test | 1.2m free fall |
ESD Performance | Air ±15kV, Contact ±8kV |
Ingress Protection | IP67 |
Power Supply | PoE (46-54V) or 24V DC |
Power Consumption | 2.6W |
Circuit Protection | Reverse polarity protection |
Frequency | 902 MHz ~ 928 MHz (US) |
Protocol Standard | EPC Global Class 1 Gen 2 / ISO 18000-6C |
Max Tag Memory | 2K Bytes |
Read Distance | 0 ~ 2000mm (depends on tag and environment) |

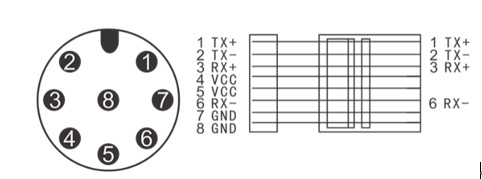

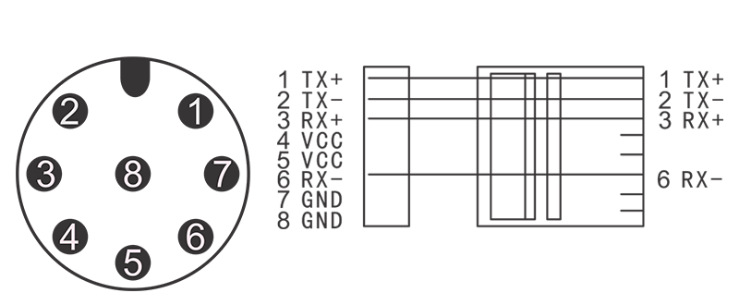

Communication Interface | Ethernet |
Communication Protocol | EtherNet/IP |
Automated production line data collection
AGV tray information reading
Semiconductor and lithium battery manufacturing
Automotive assembly and brake pad processing
Precision Tool management
Engine and compressor assembly lines
Smart warehouse and sorting systems
Injection molding workshop logistics
