Compact USB UART RFID Reader Writer Module with External Antenna for Access Control & Kiosks

特征

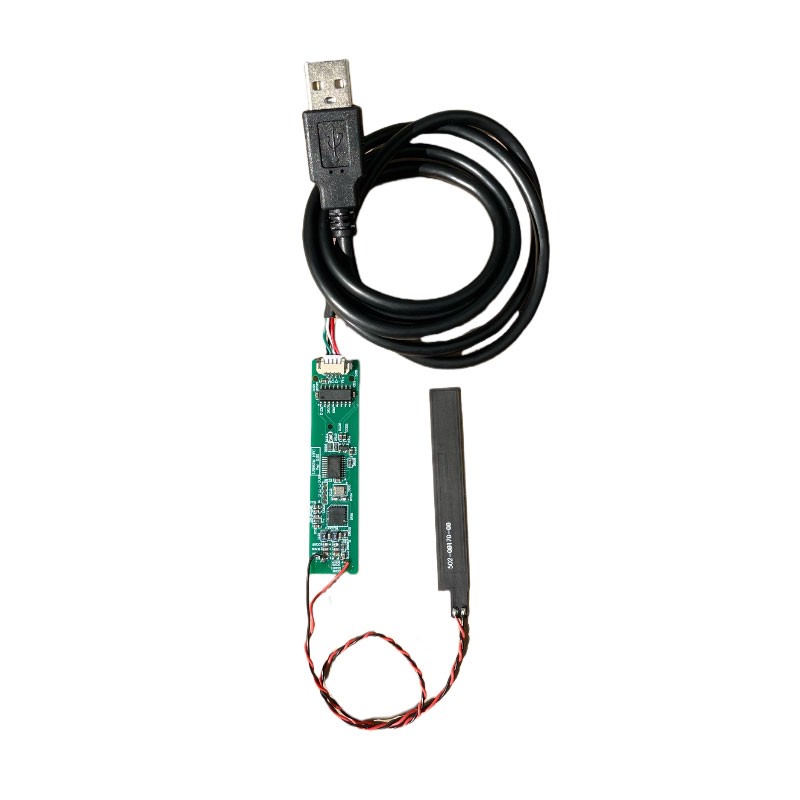

• Compact Split Design: Small main module (64x15x6mm) with a separate external antenna for versatile placement in slim devices.

• Dual Communication Interfaces: Offers both USB (免驱/No-driver) and UART TTL interfaces for maximum connectivity flexibility.

• Broad Card & System Support: Reads/writes MIFARE, NTAG, and ISO14443A cards. Compatible with Windows, Linux, and Android hosts.

• Plug-and-Play USB Simplicity: USB version can emulate a keyboard to automatically output card numbers, enabling instant use without custom software.

• Stable Performance: Utilizes high-frequency inductance for consistent and reliable read/write distances.

参数

USB Interface Parameters

• Working Voltage: 3.3 - 5.5V DC (via USB)

• Working Current: < 36mA

• Working Frequency: 13.56 MHz

• Read/Write Distance: 20 - 40mm (depends on card and antenna)

• Interface: USB (No-driver, HID keyboard emulation)

• Output Format: Automatically outputs card number in ASCII followed by a carriage return (Enter key).

• Supported Cards: MIFARE (M1) and all ISO14443A protocol cards.

• Module Dimensions: 64mm (L) x 15mm (W) x 6mm (H)

UART (TTL) Interface Parameters

• Working Voltage: 3.3 - 5.5V DC

• Working Current: < 50mA

• Working Frequency: 13.56 MHz

• Read/Write Distance: 10 - 20mm

• Interface: TTL UART (Logic Level: 3.3V)

• Default Baud Rate: 9600 bps (others configurable)

• Functionality: Supports read and write operations.

• Supported Cards: MIFARE (M1) and all ISO14443A protocol cards.

• Module Dimensions: 64mm (L) x 15mm (W) x 6mm (H)
