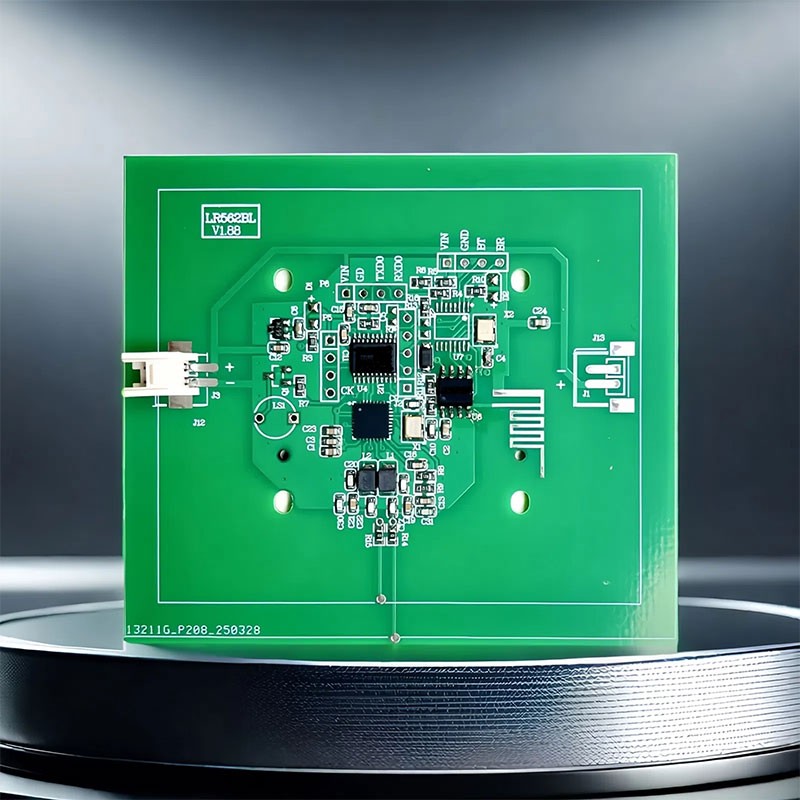

Low Power Bluetooth 5.1 NFC RFID Reader Module for Wireless Applications up to 20m

This is a highly versatile, low-power 13.56MHz RFID/NFC reader module designed for modern wireless applications. It integrates Bluetooth 5.1-5.3 BLE technology, enabling a seamless wireless connection range of 10-20 meters, which eliminates the need for complex wiring. The module automatically identifies and reads card IDs from a wide range of tags, including M1, ISO14443A, and CPU cards, with a typical reading distance of 30-80mm. Its ultra-low standby power consumption (under 0.2mA) makes it ideal for battery-powered or energy-sensitive devices. With a compact form factor and simple BLE transparent transmission interface, it is perfectly suited for integration into smart charging piles, tablets, access control systems, campus terminals, and various IoT payment or identification solutions.

特征 (Features)

Wireless Bluetooth Connectivity: Features integrated Bluetooth 5.1-5.3 BLE for cable-free data transmission up to 20 meters, simplifying installation.
Ultra-Low Power Design: Consumes less than 50mA during operation and under 0.2mA in standby, ideal for portable and battery-operated devices.
Automatic Card Recognition: Automatically detects and reads the UID of cards/tags within its field without host intervention.
Broad Card Compatibility: Supports popular 13.56MHz cards including M1 (S50/S70), all ISO14443A protocol cards, NFC Tags, and CPU cards.
Plug-and-Play Interface: Utilizes a simple BLE transparent serial transmission mode for easy integration with host systems like Android/iOS apps or central controllers.

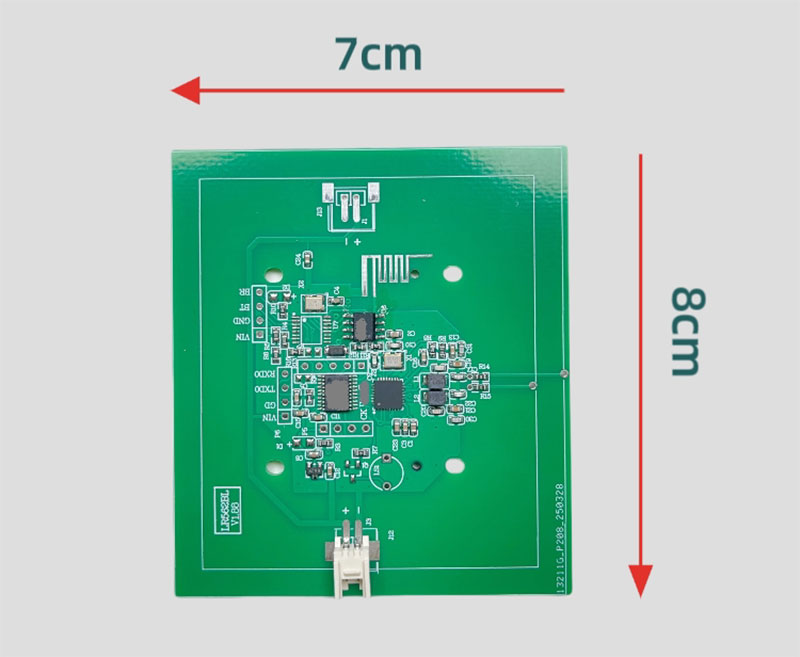

Compact & Versatile: Small size (70x80x8mm) and low power consumption enable deployment in space-constrained and mobile applications like tablets and handheld terminals.
