Smart Parking & Vehicle Access Control Solution (UHF RFID)

Reliable, Long-Range Identification for Communities, Malls, Factories, and Parking Lots.

Overview

Our integrated RFID access control system is widely deployed in residential communities, commercial parking lots, shopping malls, and industrial parks. The solution supports seamless entry/exit for vehicles, personnel, and electric bikes without physical contact. By combining UHF RFID technology with smart display terminals, it enables efficient gate management, electronic license plate recognition, and automated traffic flow.

Core Product Models

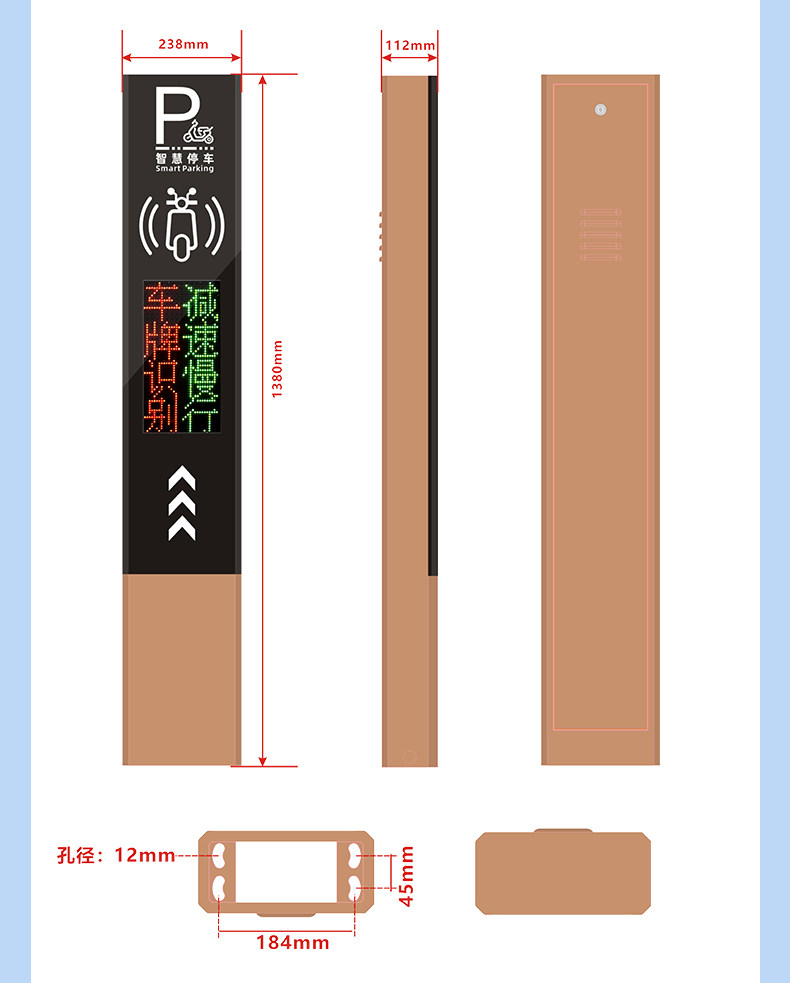

Model 1: (Smart Vertical Terminal)

A heavy-duty, all-in-one vertical terminal designed for high-traffic entry points.

• Dimensions: 238(L) × 113(W) × 1380(H) mm | Weight: ~9.5 kg

• Material: Thickened sheet metal + acrylic panel (Painted thickness up to ~1.15mm)

• Protection: IP44 (Indoor/Outdoor semi-shielded)

• Read/Write Distance: 0~8m (Reading) / 0~100cm (Writing)

• Display: 32×64 high-brightness 3-color LED display (Shows "License Plate Recognition", "Slow Down", etc.)

• Audio: Built-in universal voice player (Customizable broadcasts)

• Protocol: ISO18000-6C (EPC C1 GEN2)

• Interfaces: Ethernet (10M/100M), USB-B, 2x Relay Output, 2x Optocoupler Input

• Power: DC 9~24V / AC 220V | Consumption: 30W

• Frequency: 902~928 MHz, 865~868 MHz

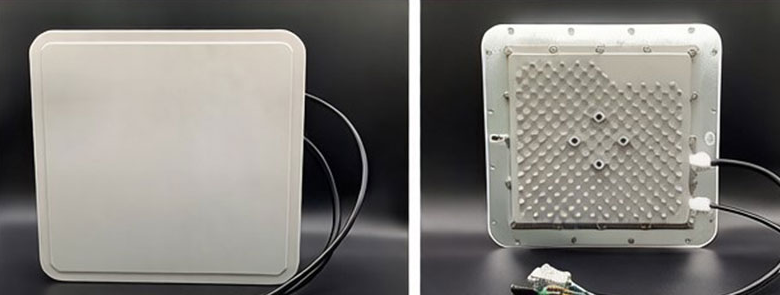

(Compact RFID Reader)

https://rfid-life.com/product/UHF-RFID-reader-writer-all-in-one-machine.html

A lightweight, high-protection square reader ideal for flexible installation.

• Dimensions: 200 × 200 × 45.5 mm | Weight: 950g

• Material: ABS + PA fiberglass

• Protection: IP65 (Weatherproof/Dustproof)

• Read Distance: 0~6m | Recognition Speed: >30 tags/sec

• Communication: RS232 / RS485 / TCP/IP / WiFi / 4G (HTTP/MQTT configurable)

• Protocol: ISO18000-6C (EPC C1 GEN2) | Custom 2.4G dual-frequency available

• Power: DC 9~24V (Standard) / POE DC 37~57V | Consumption: 12W Max

• SDK: Provides C++, C#, JAVA development examples

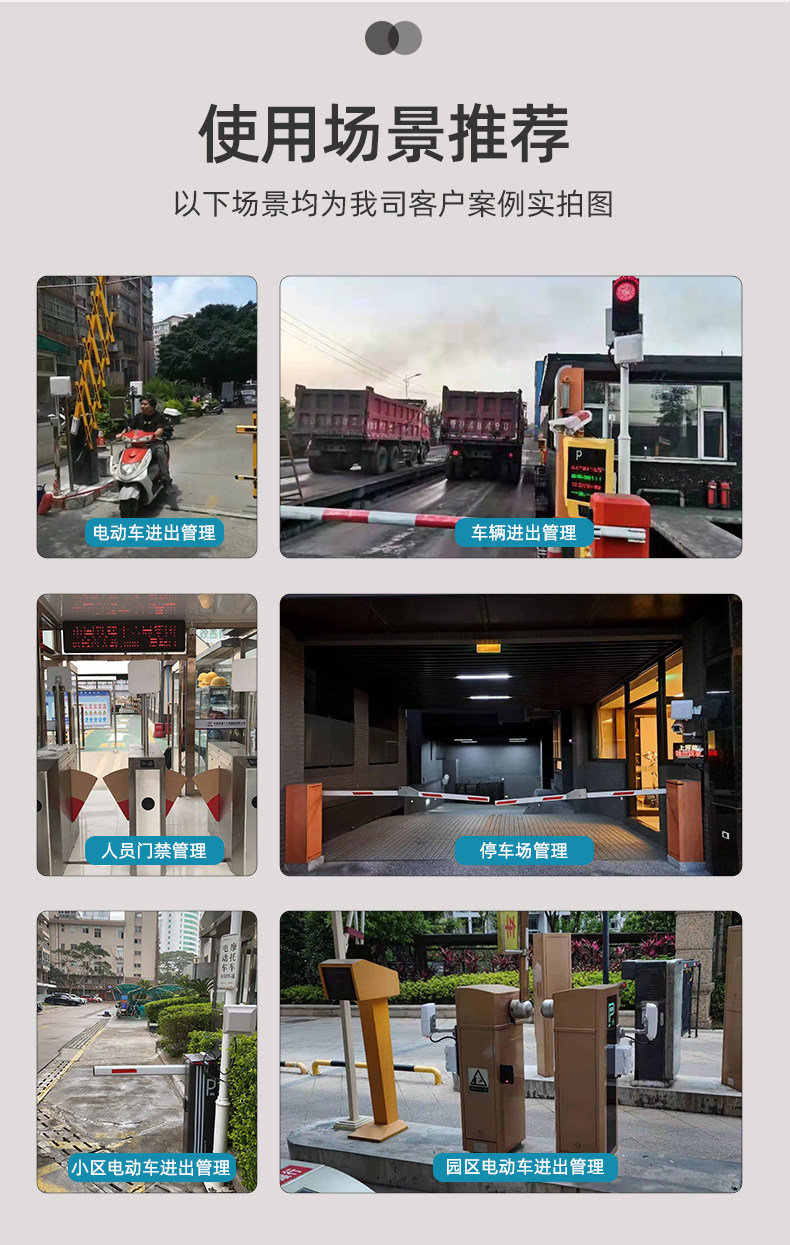

Key Application Scenarios

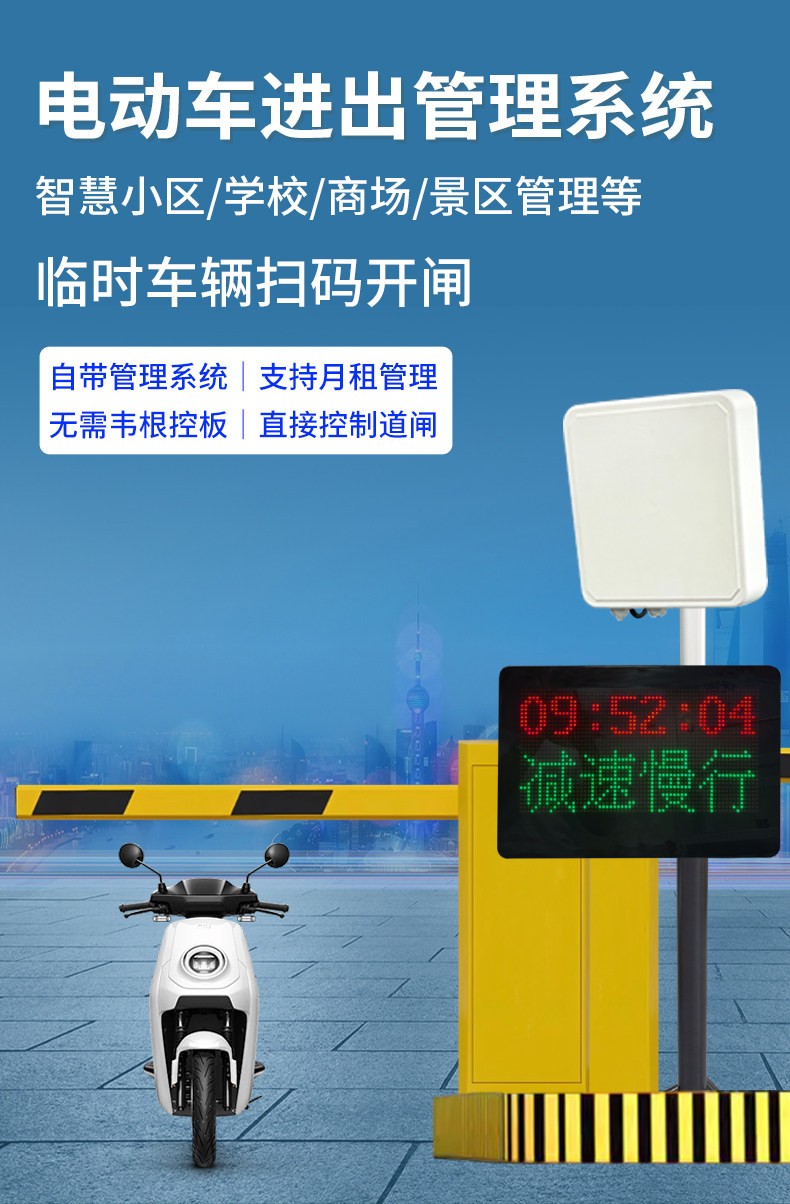

• Residential Communities: Pedestrian & electric bike entry (no card swiping), vehicle gate control.

• Commercial Parking: Underground & surface parking lot vehicle identification.

• Shopping Malls: High-traffic vehicle management and access logging.

• Industrial Parks/Factories: Heavy vehicle (trucks) access, secure perimeter gate management.

• Mixed Traffic: Simultaneous management of cars, e-bikes, and personnel.

Installation & Read Range

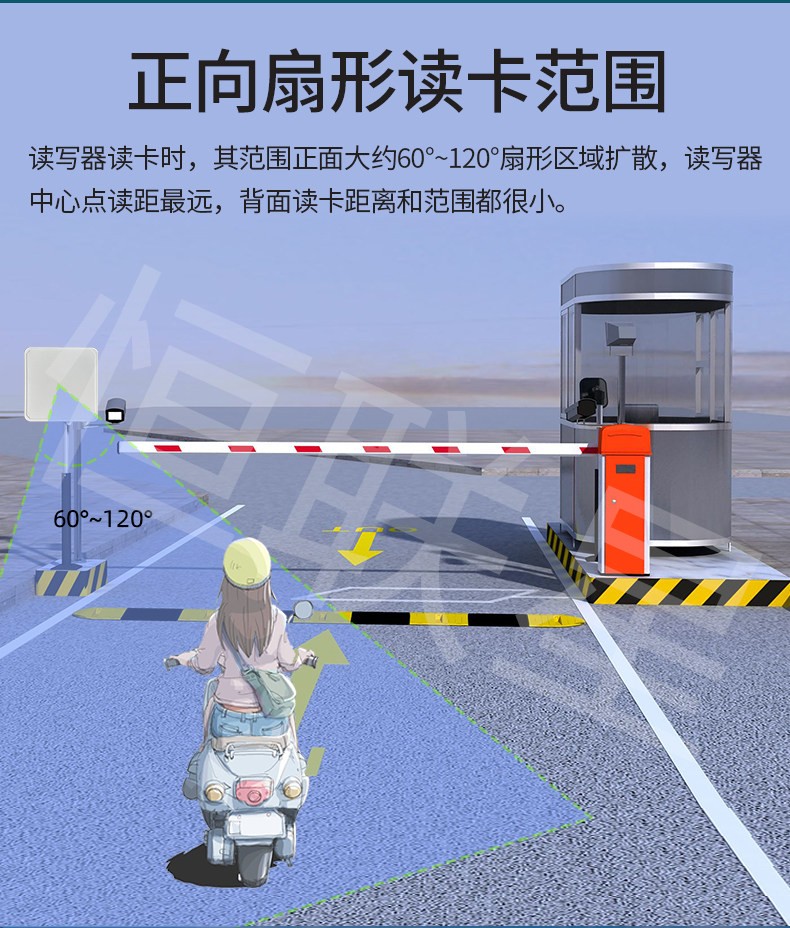

• Read Range: Frontal 60°~120° fan-shaped coverage. Center point offers max distance (0~6m/8m depending on model/gain/tag). Minimal read range on the back.

• Installation Methods:

• L-Bracket + Vertical Pole Mount (Standard)

• Universal Swivel Bracket Wall Mount (Optional)

• Integration: Seamless connection with barrier gates, traffic lights, and central management software.

Technical Highlights

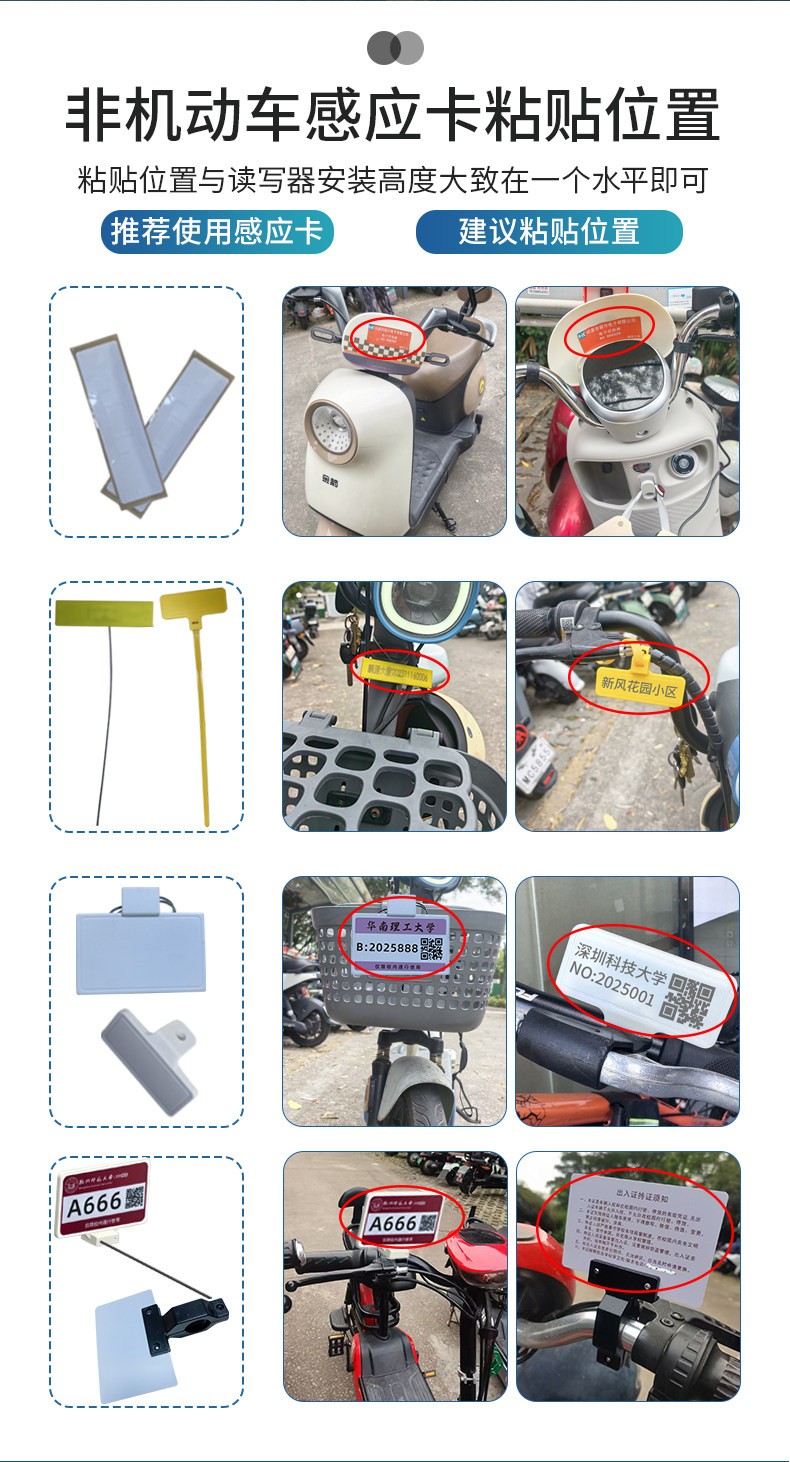

• Long-Range UHF: Fast identification of UHF electronic tags (cars, e-bikes, tricycles).

• Visual & Audio Guidance: LED prompts ("Slow Down") and voice alerts enhance user experience.

• Rugged Design: Sheet metal construction (E1380Q) and IP65 rating (P208QS) ensure durability.

• Global Frequency: Supports both US (902-928MHz) and EU (865-868MHz) UHF bands.
