This UHF RFID Mini PC integrates a powerful computing core with a long-range RFID reader, delivering a compact all-in-one solution for industrial IoT, smart retail, logistics, and access control. Built with a durable metal chassis, it supports EPC Global UHF Class 1 Gen2 / ISO18000-6C protocols with a reading range of up to 20 meters. The system is fully customizable — from CPU and memory to RFID frequency and OEM branding — making it ideal for bulk deployment and specialized applications.
Integrated UHF RFID Module: Supports EPC Global UHF Class 1 Gen2 / ISO18000-6C, reading range up to 20m, with FHSS or fixed frequency transmission. Compatible with temperature and humidity sensor tags.
High-Performance Computing: Configurable with Intel Core i3/i5/i7 (2nd to 10th Gen) or J1800/J1900 processors, 4GB/8GB RAM, and 128GB-512GB SSD for fast boot and smooth multitasking.
Dual Network Connectivity: Gigabit Ethernet plus dual external WiFi antennas ensure stable and flexible networking.
Rich industrial Interfaces: Includes HDMI, VGA, USB 3.0/2.0, RS232, RS485, Wiegand, and audio ports — compatible with a wide range of peripherals and RFID devices.
4 × SMA Antenna Ports: Supports external antenna deployment for extended RFID coverage.
RF Power Up to 33dBm: Ensures reliable long-range tag reading in demanding environments.
Development Support: Full SDK and DEMO for Windows, Android, C++, C#, and JAVA. Supports IAP firmware upgrade.

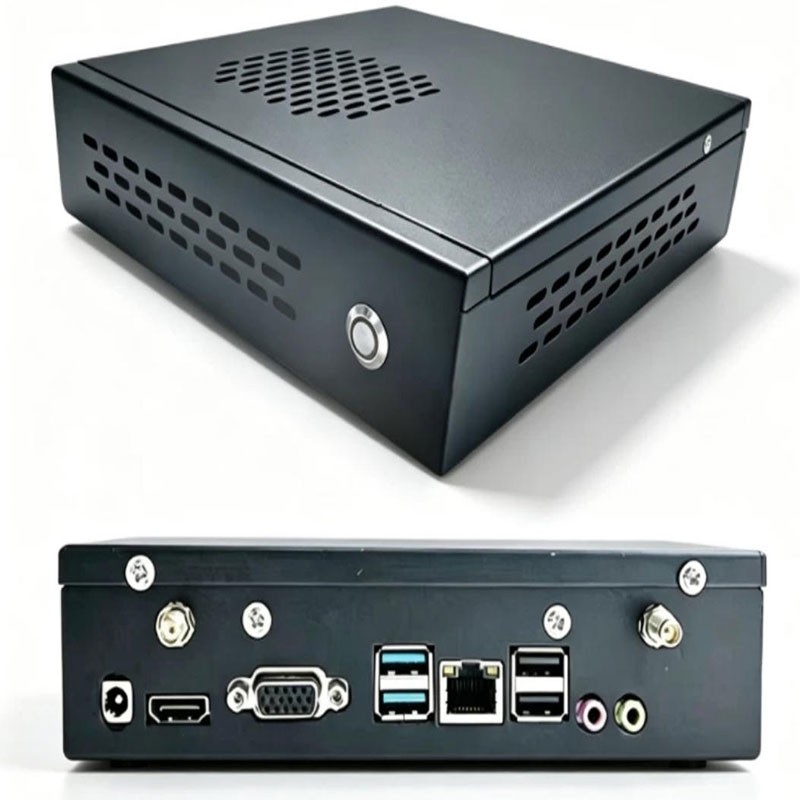

Compact & Durable Design: 190×175×47mm metal chassis with non-slip feet, dust-proof mesh, and all-around cooling for 24/7 operation.
OEM Customization: Custom LOGO, hardware configuration, and RFID frequency available for bulk orders.
Category | Details |
|---|---|
Dimensions | 190mm (W) × 175mm (D) × 47mm (H) |
Chassis | Metal Case, Non-slip Feet, Dust Mesh, Ventilation |
Processor | Intel Core i3/i5/i7 (2nd-10th Gen) / J1800 / J1900 |
Memory | 4GB / 8GB DDR |
Storage | 128GB / 256GB / 512GB SSD |
Video Ports | 1 × HDMI, 1 × VGA (Dual display) |
USB Ports | USB 3.0 & USB 2.0 |
Network | 1 × Gigabit RJ45, Dual WiFi Antennas |
Serial & Control | RS232, RS485, Wiegand, 1 × COM |
Audio | Mic-In & Audio-Out (3.5mm) |
Power | DC +12V |
RFID Frequency | EU 840~868MHz / US 902~928MHz (Customizable) |
RFID Protocol | EPC Global UHF Class 1 Gen2 / ISO18000-6C |
RFID Range | 0~20 Meters |
RF Power | Up to 33dBm |
Antenna Ports | 4 × SMA |
RFID Modes | Active, Passive, Triggered; FHSS or Fixed Frequency |
Inventory | Independent/Joint EPC, TID, USER |
Sensor Tags | Temperature, Humidity, etc. |
Dev Support | DEMO, SDK, IAP Upgrade; Windows/Android/C++/C#/JAVA |
OS Support | Windows / Linux |
Customization | OEM Logo, Hardware Config, RFID Frequency |
i3 2nd Gen | 4GB RAM | 128GB SSD
i5 2nd/3rd/6th Gen | 4GB/8GB RAM | 128GB/256GB SSD
i7 3rd/4th/10th Gen | 8GB RAM | 128GB/256GB/512GB SSD
J1800 / J1900 | 4GB/8GB RAM | 128GB/256GB SSD
Industrial IoT & Edge Computing: RFID tracking, sensor monitoring, real-time data processing.
Retail & logistics: Smart inventory management, supply chain tracking, warehouse automation.
Access Control & Security: Wiegand/RS485 integration for secure entry systems.
Digital Signage & Kiosk: Dual display support, stable network, OEM branding.
Development & Integration: Full SDK support for custom RFID applications.
Note: Hardware configurations and RFID frequency are customizable to meet specific project requirements. OEM logo customization available for bulk orders.
