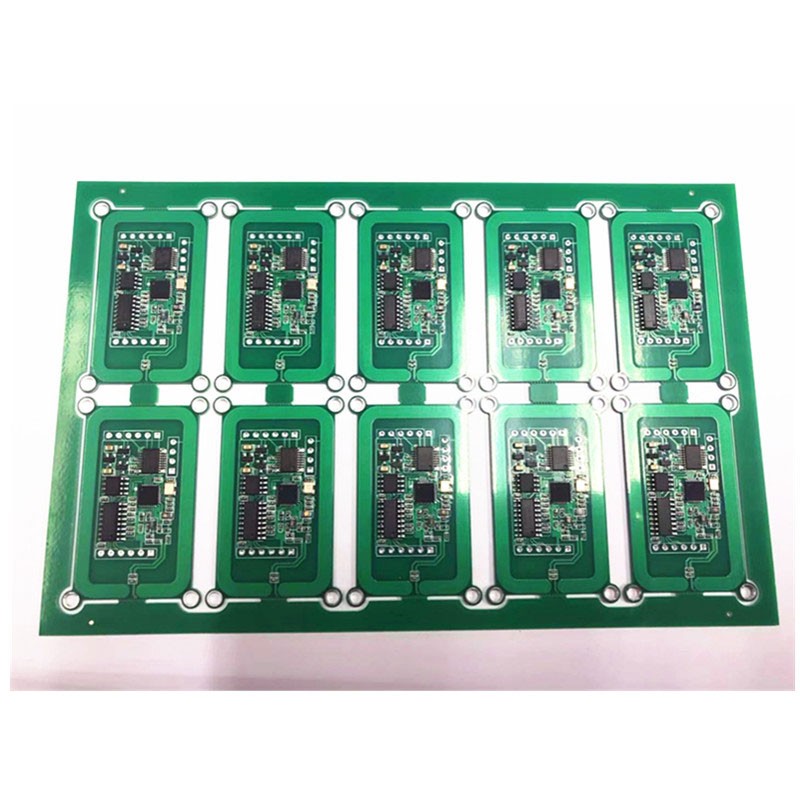

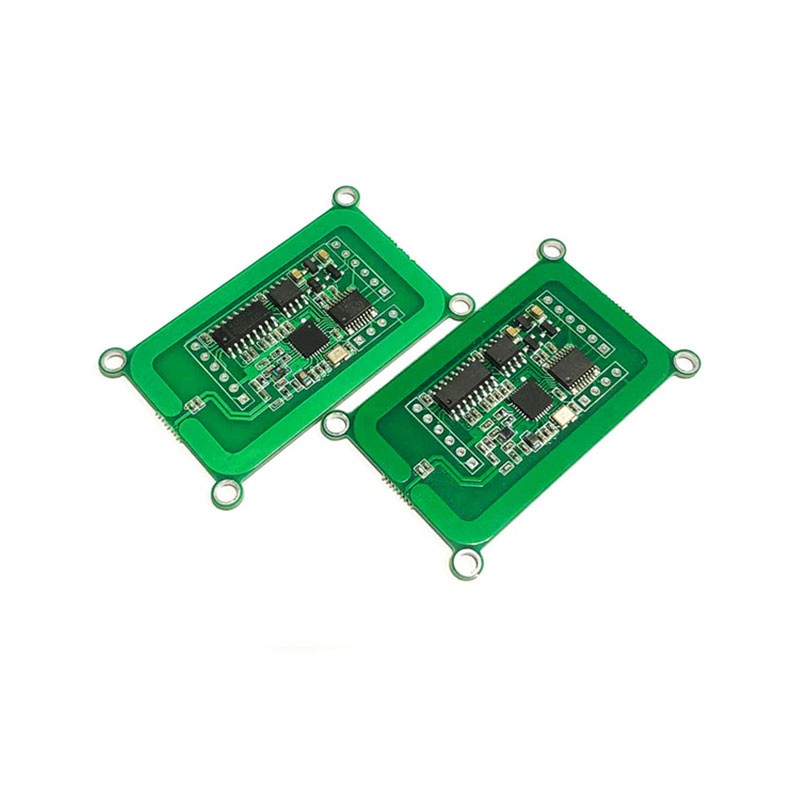

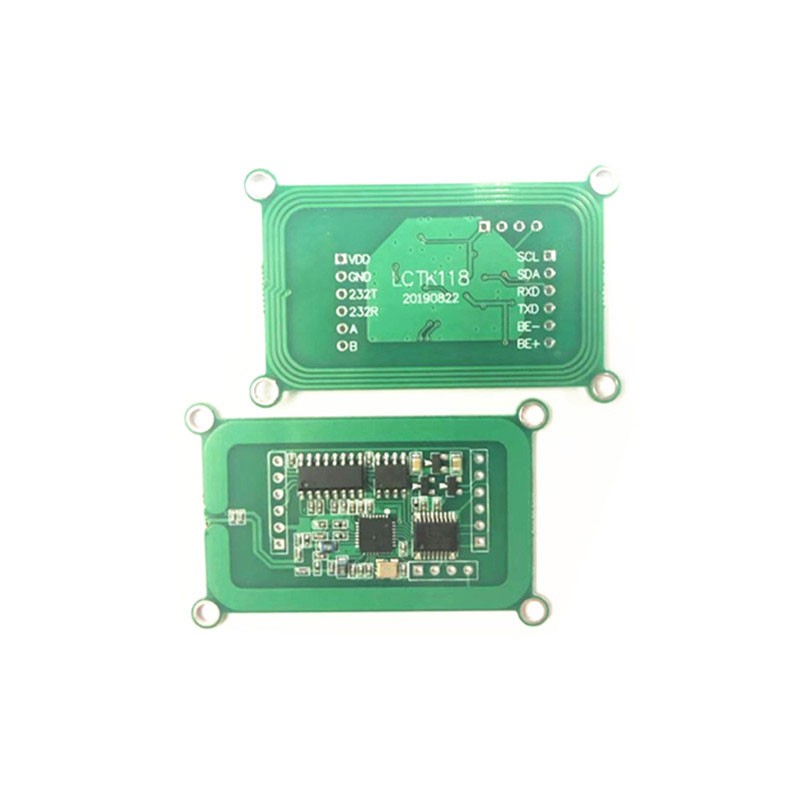

Card reader module
Working frequency: 13.56MHz
Baud rate: adjustable

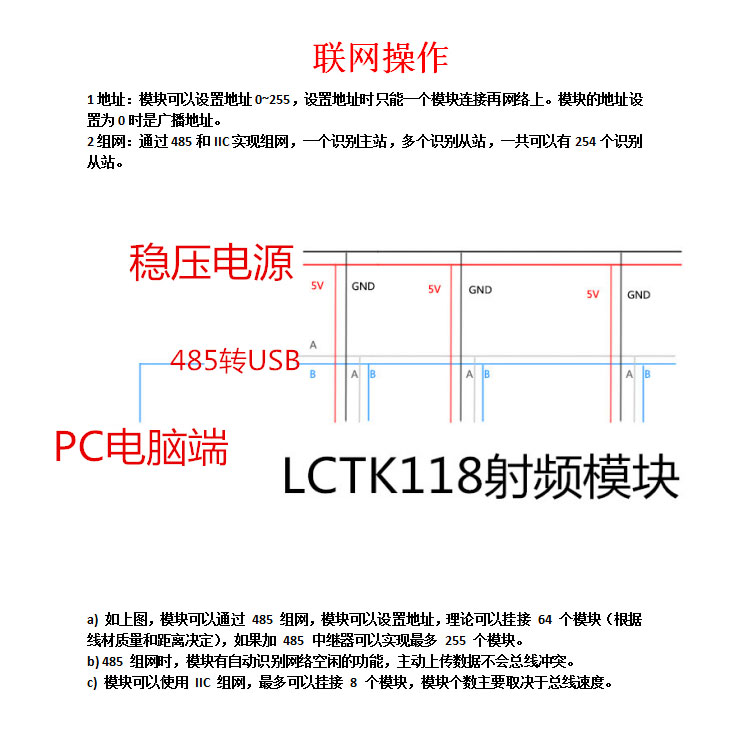

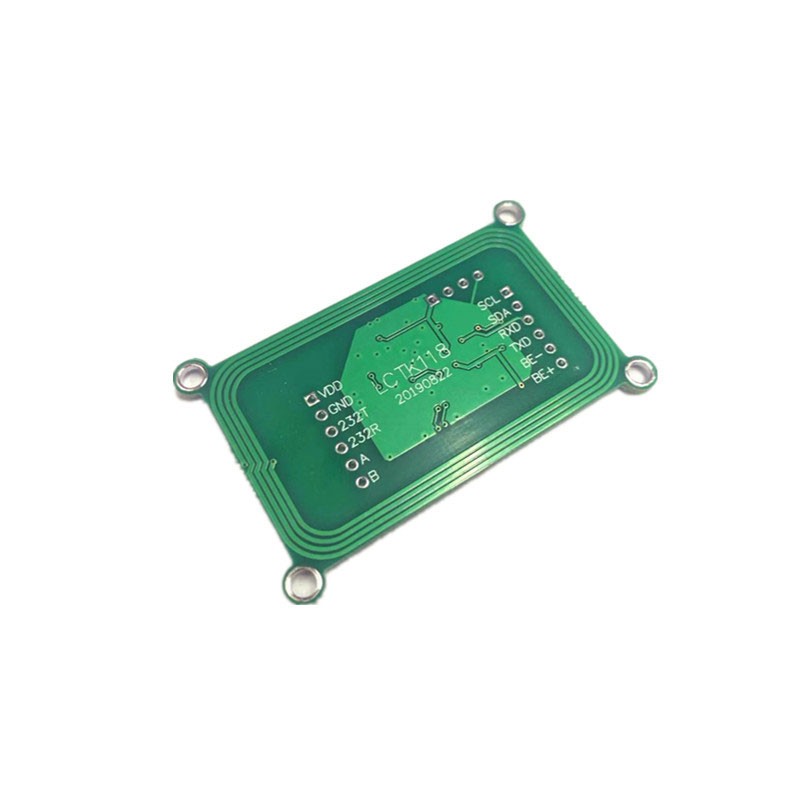

Output interface: TTL (UART), RS232, RS485, IIC
Working voltage: DC 3.3V-5V
Working current: 19mA-25mA
Standby current: 1mA
Card reading distance: <60mm
Working temperature: -20℃~85℃

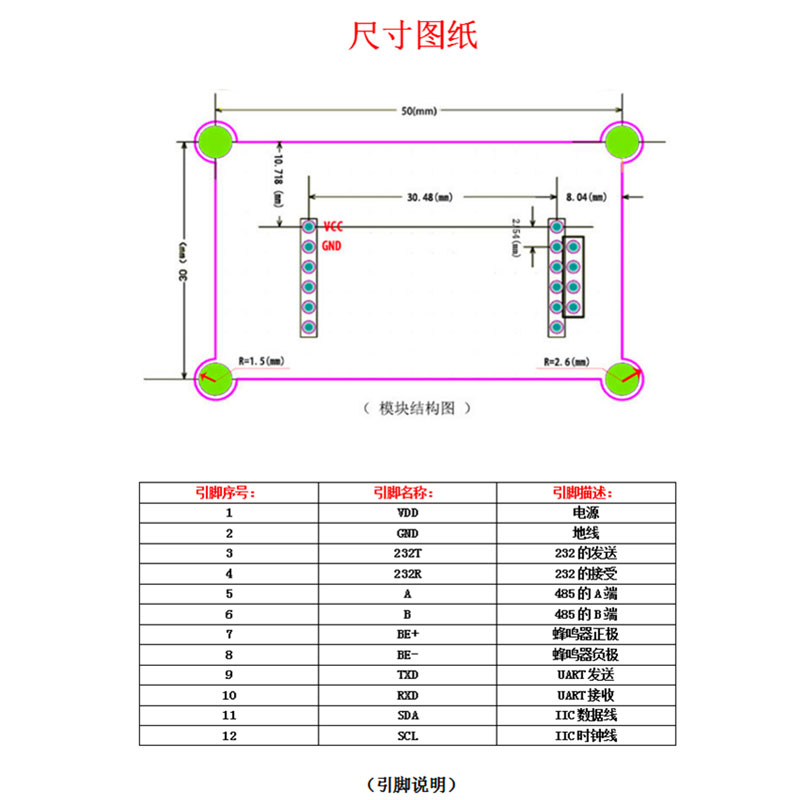

Module size: 50mm X30mm
Card type: M1 (S50)
Application areas:
Access card, parking card, supermarket membership card, dormitory water card, canteen meal card, school card, charging pile card.
Card reading method: Direct serial port output and command reading at the same time
Multiple communications: RS232, UART (TTL)
Ultra-wide voltage: 3.0V-5.5V
Wireless frequency: 13.56M
Wireless protocol: 14443A
Card reading distance: about 5CM

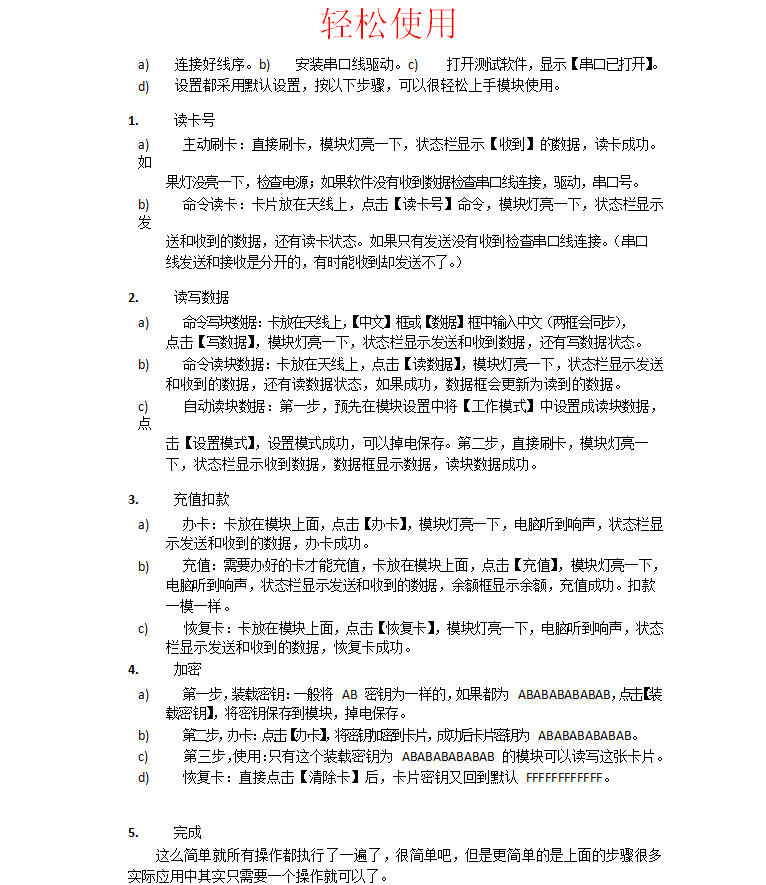

Working mode: You can directly swipe the card to read the block data, greatly shortening the development cycle

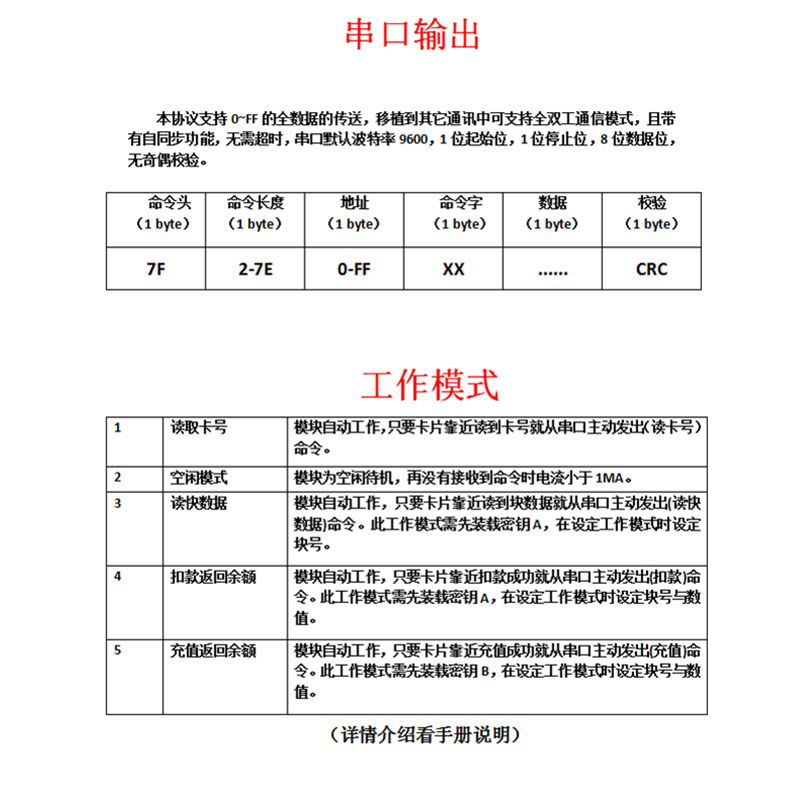

Serial port
The default baud rate of the serial port is 9600, 1 start bit, 1 stop bit, 8 data bits, and no parity check.
The baud rate can be set to
2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200.
Serial port configuration baud rate 9600N81
Card read command
7F 03 00 10 13
Card response
7F 0A 00 90 00 aa aa bb bb bb bb3F aa card type bb card number
No card response
7F 04 00 90 FF 6B
