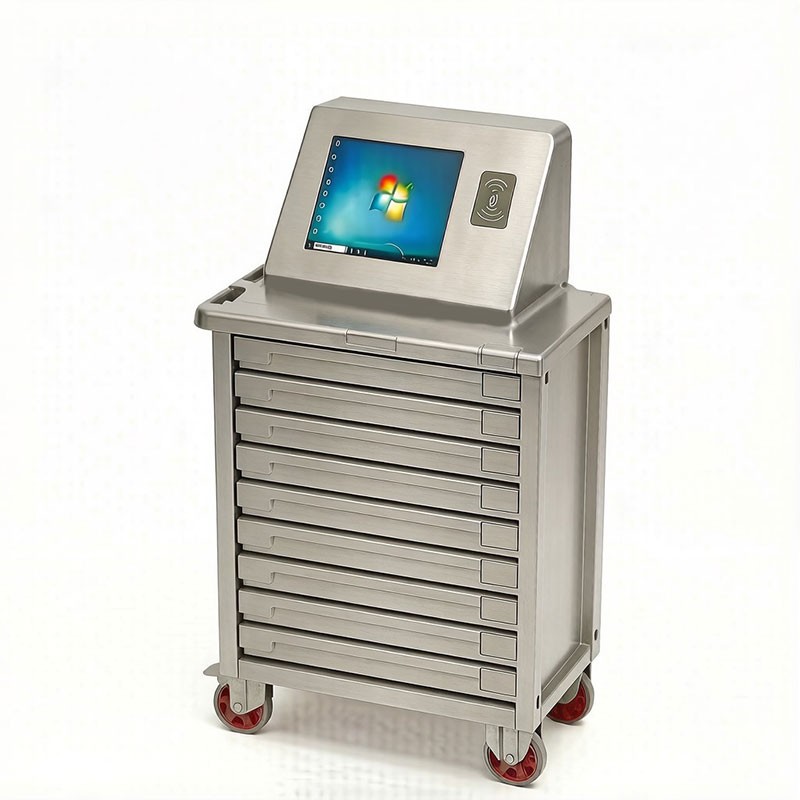

RFID Smart Tool Cart RFID industrial tool management solution

II. Performance and Technical Specifications

1. RFID Parameters:

◦ Operating Frequency: 920MHz ~ 925MHz

◦ Standard Compliance: ISO 18000-6C

◦ Identification Speed: ≤5 seconds for inventorying an entire vehicle (300+ Tools)

◦ Identification Accuracy: 99.99%

◦ Output Power: 8dBm-33dBm (Adjustable)

2. Hardware Configuration:

◦ Main Control/Display:

▪ Screen: 10.1-inch industrial touchscreen (foldable, 0-110° adjustable angle)

▪ Resolution: 1920*1200

▪ CPU: i3 (Optional: i5/i7/J4125)

▪ Memory: 8GB

▪ Hard Drive: 128GB

◦ Power Supply and Power Consumption:

▪ Battery Capacity (OPTIONAL): 40 Ah

▪ Total Power Consumption: Approximately 45W

▪ Power Supply: 5A, 220V

▪ Battery Life: Supports 24-hour operation with low battery reminder function

◦ Interfaces:

▪ Communication Interfaces: Ethernet, WiFi, 4G (optional)

▪ USB: 4 ports

▪ COM Ports: 2 RS232 ports

▪ Display Interface: HDMI

3. Software and System:

◦ Operating System: Supports Android / Windows (optional)

◦ Interaction System: Android platform interaction system optional

4. Physical Parameters:

◦ Dimensions: 930mm (W) × 525mm (D) × 980mm (H)

◦ Weight: 48kg

◦ Material: Sheet metal

◦ Operating Temperature: -20°C ~ 60°C

◦ Storage Temperature: -30°C ~ 70°C

◦ Ambient Humidity: 5%~95% RH, non-condensing

◦ Shielding: ≤5cm

III. Key Features

1. Intelligent Tool Management:

◦ One-key operation: Complete vehicle tool inventory within 5 seconds.

◦ Real-time updates: Tool retrieval/return records are automatically synchronized to the backend via WiFi or 4G.

◦ Return warning: Automatic alarm when tools are not returned on time.

◦ Lost and found: Can be used with an RFID handheld device to locate lost tools on-site.

3. Access Control and Security:

◦ Login methods: Optional card swipe, facial recognition, finger vein recognition, etc.

◦ Independent locking: Each drawer is equipped with an independent electronic lock, and the unlocking sequence can be freely combined via software to prevent vehicle tipping.

4. Structural Design Features:

◦ Drawers: 7 layers, each with a maximum load capacity of 80kg, configured with different depths. Utilizes stacked ball bearing slides, with a drawer lifespan exceeding 30,000 cycles.

◦ Workbench: Injection molded, smooth surface for easy cleaning; handles are injection molded with soft rubber for a comfortable grip.

◦ Mobility: Equipped with 125mm large-diameter PU wheels (ball bearings), facilitating obstacle crossing and effortless propulsion.

◦ Protection: The vehicle body is equipped with new composite material protective strips around its perimeter for impact protection.

◦ Expandability: Expansion holes on both sides allow for the addition of accessories. The fully enclosed cabinet design effectively shields against external interference.

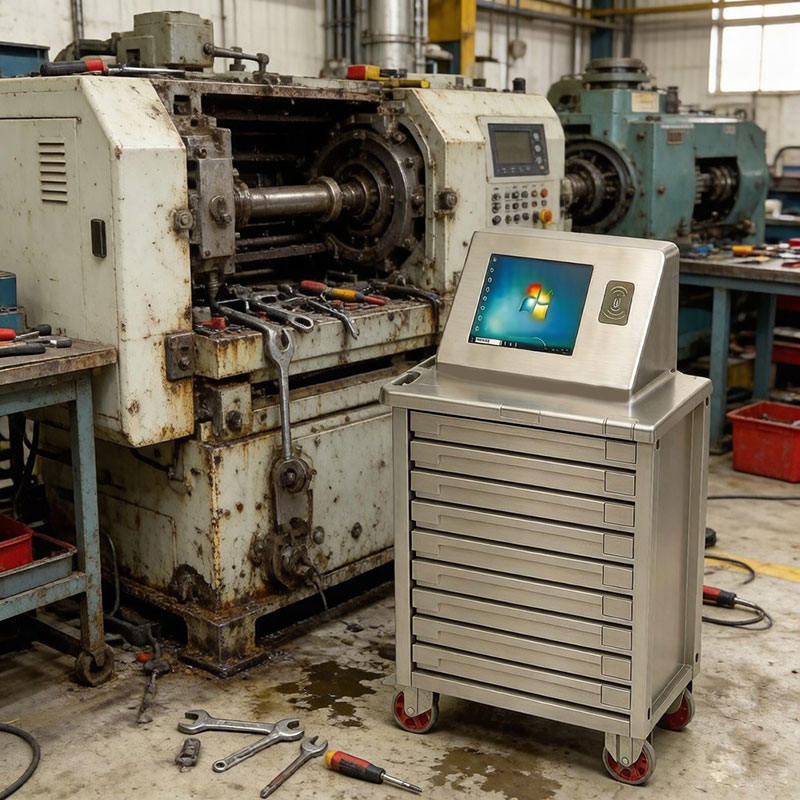

IV. Application Scenarios

Industries such as rail transit, aircraft maintenance, high-speed rail maintenance, power line inspection, intelligent manufacturing, power machinery, prison labor, and ship operations.
