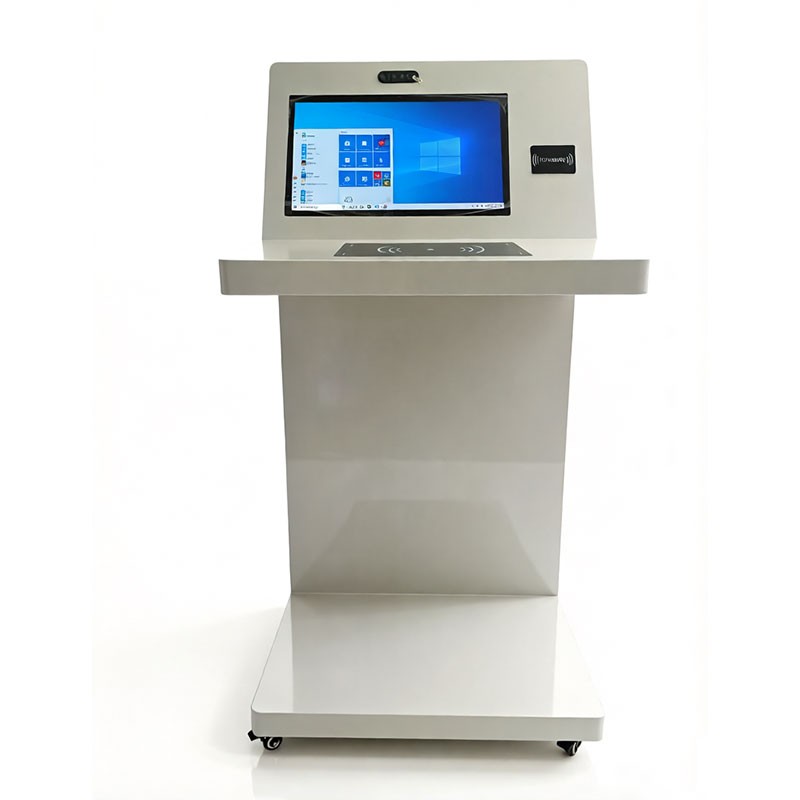

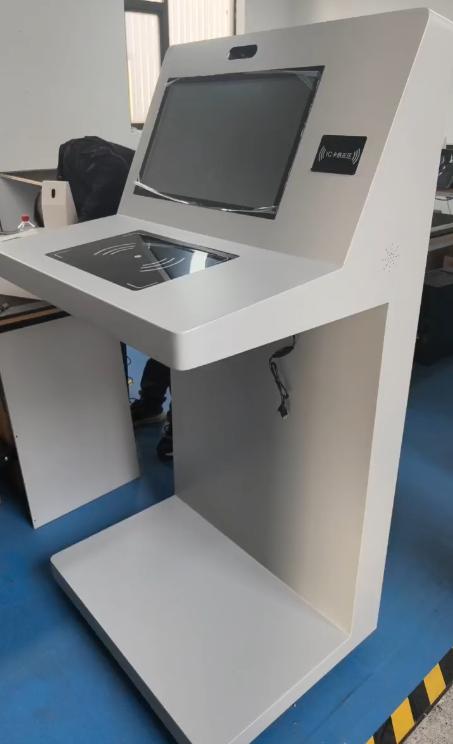

RFID Library self-service kiosk

The emergence of self-service book lending and returning machines is an important achievement of the innovation and intelligent development of Library service models. By using radio frequency identification (RFID) technology, self-service book lending and returning machines provide readers with a convenient and efficient borrowing experience, greatly improving the service efficiency of libraries.

Main features and main technical specifications

* Support EU 840~868MHz, US 902~928MHz working frequency (or customized)

*Supports EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags.

* Supports temperature sensor RFID tags, humidity sensor RFID tags and some other sensor RFID tags.

*FHSS or fixed frequency transmission.

* RF output power is up to 33dBm.

* Reading range 0~20M adjustable.

* Supports active, passive and triggered modes.

* Support independent or joint EPC, TID and USER inventory.

* Support IAP firmware upgrade.

* Low power consumption, using single +12 DC power supply.

* Support USB, RS232, RS485, Weigand, RJ45 (TCP/IP, UDP) interface, Bluetooth, WiFi and PoE optional.

*Supports 4 antenna SMA ports.

* Provide DEMO and SDK for development.

* Supports development based on Windows, Android, C++, C#, JAVA, etc.

◇Dimension:24.5*20.5*3.5CM

◇Interfaces: Standard-WG26/34, RS232/485, USB, TCP/IP

◇Optional:Built-in Wi-Fi

◇Protocol:EPC C1G2, ISO18000-6B/C, GB/T29768-2013(optional)

◇Frequency: US - 902MHz~928MHz, EU - 865MHz~868MHz

◇Baud rate:115200bps

◇RSSI support:Perceivable signal strength

◇Work Principle:FHSS/FF

◇Work Mode: Timing/Active/Trigger

◇Power supply:DC +9V～12V

◇Output Power:0~33 dbm (Adjustable)

◇Reading Distance:0~20M (Depending on antenna)

◇Reading Speed:>700 times/s

◇Operating Temperature:-20℃~+70℃

◇Operating Humidity:<95%RH (+25°C) Non-condensing
