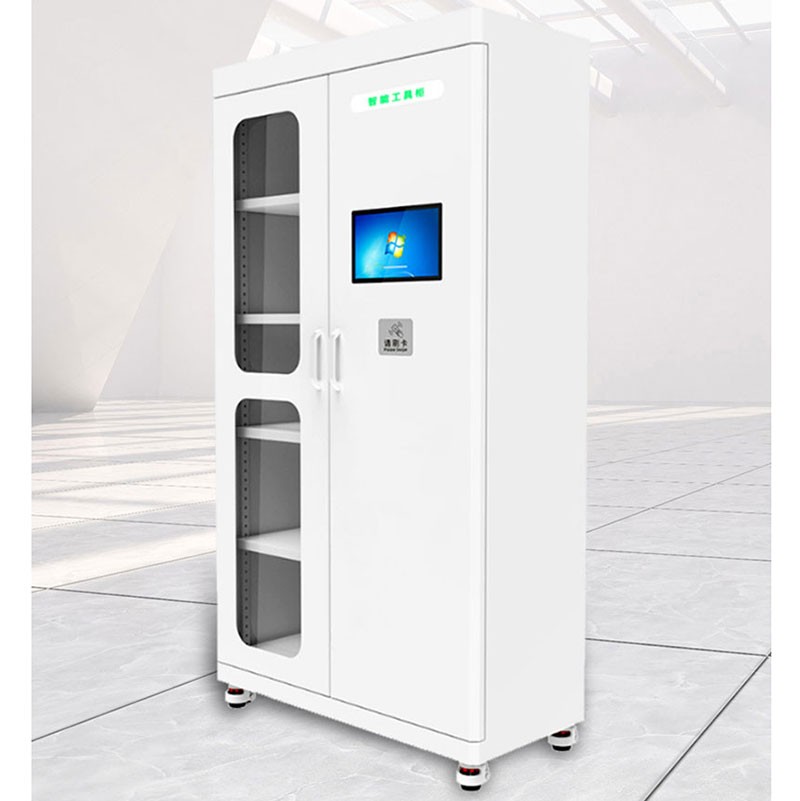

Factory Workshop RFID Smart Tool Cabinet

The RFID Smart Tool Cabinet is a professional warehouse management device compliant with the ISO 18000-6C international standard, designed specifically for industrial scenarios such as factory workshops and warehouses. Based on advanced UHF RFID automatic identification technology, it enables intelligent management of tools and materials throughout their entire lifecycle.

YouTube

Parameter Item	Parameter Value
Product Model	Main Cabinet / Subordinate Cabinet
Screen Size (Main Cabinet)	10-inch capacitive touch screen, resolution 1920×1080, screen ratio 16:9, customizable
Operating System	Windows/Android
Industrial Control Configuration	I3/I4/I5, 4th Gen, 8G + 128G (Dual Ethernet ports) / RX3399, 4G + 32G
Identification Method	Radio Frequency Identification (UHF RFID)
Login Method	Card Swipe, Fingerprint, Facial Recognition, Password/IC Card, customizable
Read Time	5 seconds
Expansion Options (Optional)	Surveillance Camera, Anti-Collision Machine
Emergency Unlock	Located on top of cabinet
Door Glass	4mm Tempered Glass, customizable
Shielding Performance	No crosstalk between cabinet doors; crosstalk distance at door gap ≤ 5cm
Master/Subordinate Cabinet Connection Method	Communication between cabinets: via Ethernet port cascading / Master-Subordinate: Cascaded connection (one cabinet group uses one external network port, one power port)
Tag Identification Capacity	300+ pcs (relates to tag performance, material, and quantity of managed items)
Identification Speed	Within 200 items, tag identification time ≤ 5 seconds (relates to tag performance, material, and quantity of managed items)
Main Cabinet Communication Interfaces	Standard: Ethernet port, 2 groups of USB; Optional: WiFi, 4G
Subordinate Cabinet Communication Interface	Ethernet port
Personnel Access	Standard: Advanced card swiping / Binocular facial recognition
Supply Voltage	AC220V 50Hz
Power Consumption	≤150W
Development Support	SDK/API development package provided
Material	1.0mm thick carbon steel sheet, customizable
Color	White, customizable
Overall Dimensions (W * H * D)	1100mm * 2030mm * 500mm, customizable
Internal Layout	Four tiers (standard) / hanging rack, customizable
Shelf Dimensions	970 * 440mm, tier height 280mm, customizable
Fixed/Mobile Method	4 locking casters
Operating Temperature	-20°C ~ +60°C
Storage Temperature	-25°C ~ +70°C
Storage Humidity	20% ~ 90%

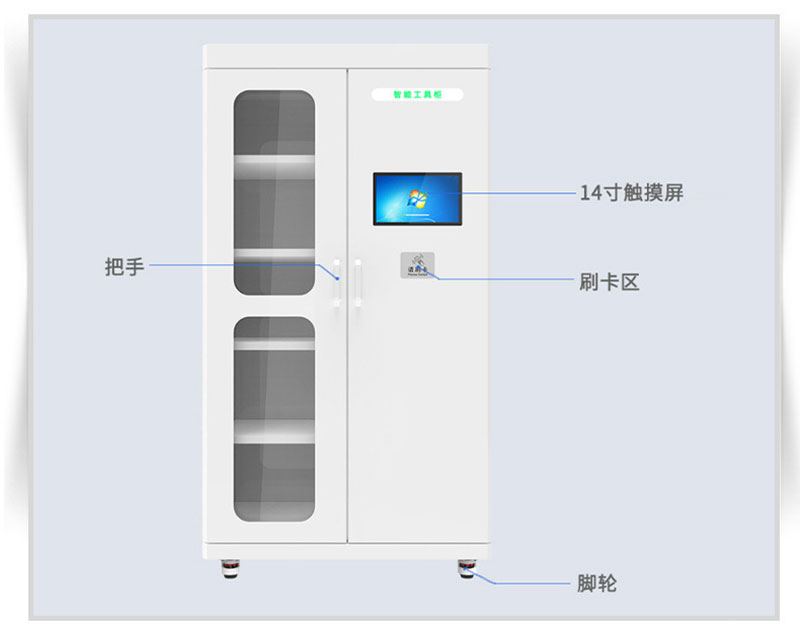

Industrial RFID Smart Tool Cabinet | Automated Inventory & Storage Management

Core functions include:

Real-time Inventory and Search: Automatically and quickly identifies all labeled items within the cabinet, achieving accurate inventory checks and real-time location searches within seconds.

Intelligent Storage and Recording: After employees log in via card swiping, fingerprint, or facial recognition, the system automatically records the person and time of access for each tool, ensuring traceability of operations.

Unmanned Operation: Supports 24/7 uninterrupted operation, reducing manual supervision costs. The user interface is simple and easy to use.

Advanced Management Functions: Integrates over-inspection reminders (providing warnings for tools requiring regular calibration), voice-guided operation instructions, and abnormal status alerts, greatly improving management efficiency and security.

This cabinet is highly adaptable and can be deployed indoors or in protected semi-outdoor environments. It offers stable and reliable performance, making it an ideal solution for promoting the digital and intelligent upgrading of enterprise tool storage management.

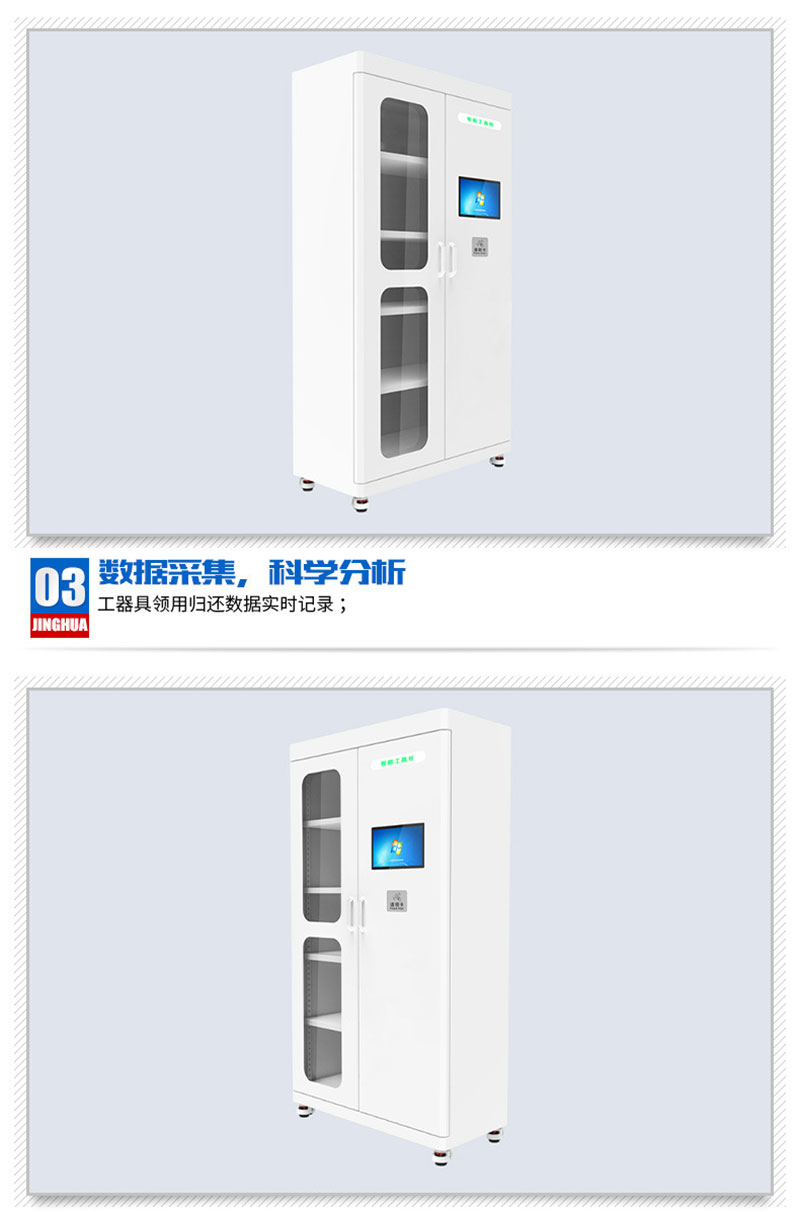

Industrial RFID Smart Tool Cabinet | Automated Inventory & Storage Management 2
