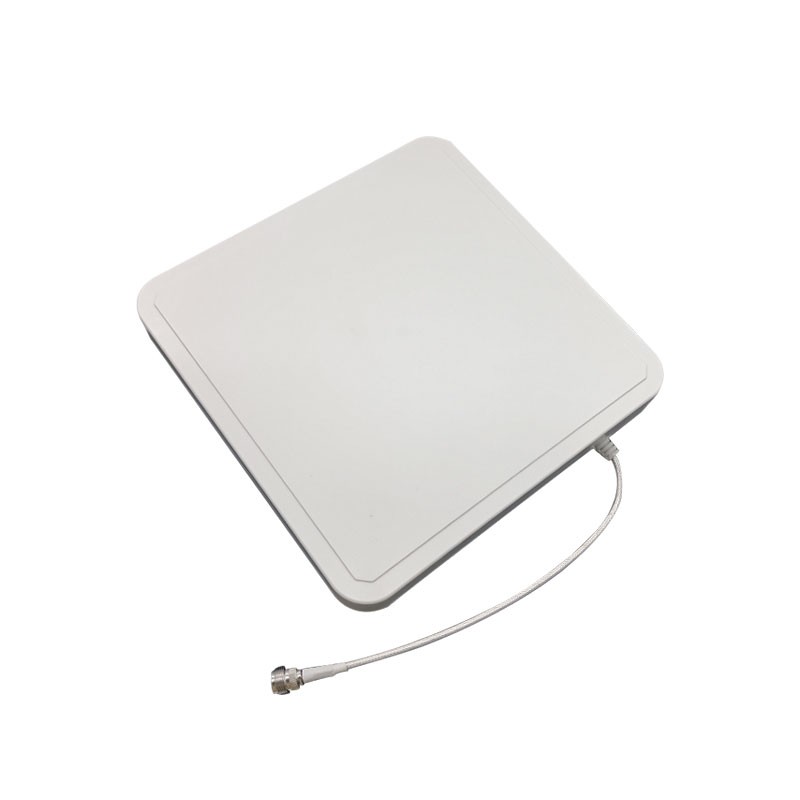

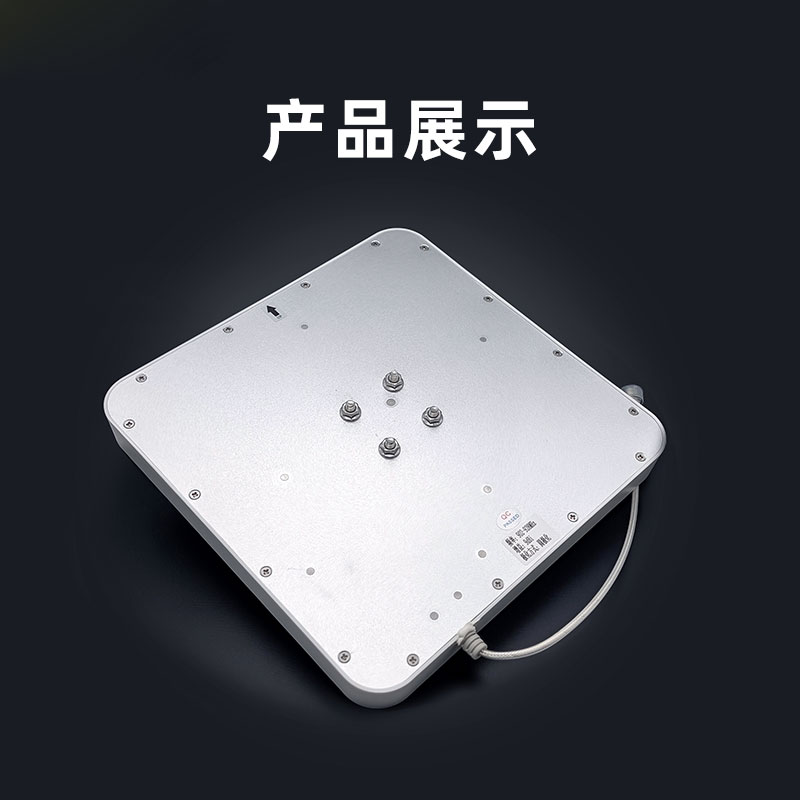

This is a high-performance UHF RFID antenna designed for fixed applications in IoT networks, logistics, and access control systems. Featuring 9dBi gain and circular polarization, this antenna ensures excellent read/write performance and a wide coverage area, effectively mitigating multi-path interference and reading blind spots. The device supports the 902MHz~928MHz frequency band and is equipped with an N-Female connector for compatibility with most UHF readers.
Built for industrial environments, it features an ABS radome and an IP67 waterproof rating, allowing it to withstand harsh outdoor conditions including dust, rain, and immersion. With a maximum wind resistance of 50m/s and an operating temperature range of -20℃~60℃, this robust antenna is ideal for smart city, warehouse, and Asset tracking deployments.
Frequency Range: 902MHz ~ 928MHz
Gain: 9 dBi
Polarization: Circular Polarization
Beamwidth: Horizontal 70° / Vertical 60°
VSWR: ≤ 1.4
Front-to-Back Ratio: ≥ 20 dB
Impedance: 50 Ω
Maximum Power: 100W
Connector Type: N-Female (External Thread, Internal Hole)
防雷保护 (Lightning Protection): DC Grounded
Material: ABS (Radome), White

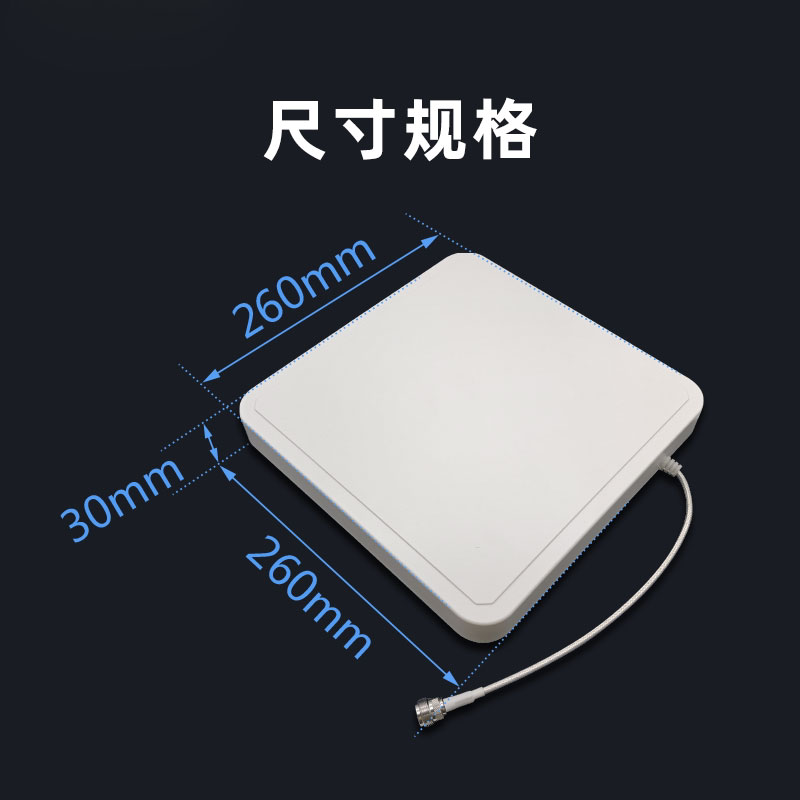

Dimensions: 260 × 260 × 30 mm
Net Weight: 1.1 kg
Gross Weight: 1.68 kg
Packaging Size: 290 × 290 × 80 mm
Operating Temperature: -20℃ ~ +60℃
Waterproof Rating: IP67
Max Wind Resistance: 50 m/s
