Compact 13.56MHz RFID NFC Reader Module with External Antenna for Access Control & Kiosks

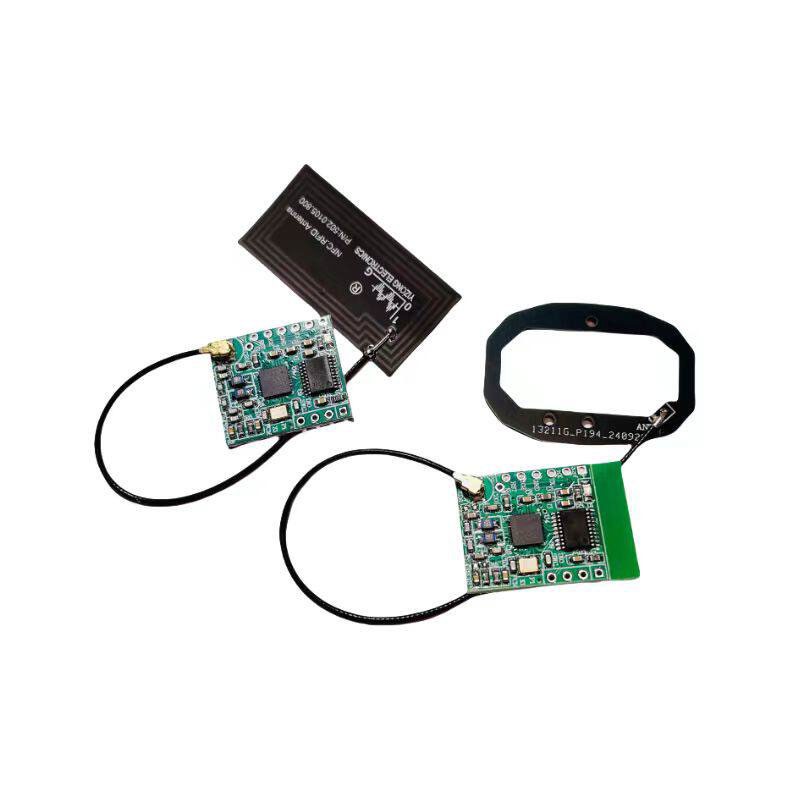

This product is a compact, highly integrated RFID/NFC reader module designed for easy integration into various embedded systems and devices. Operating at the standard 13.56MHz frequency, it supports a wide range of contactless cards including MIFARE, NTAG, and all ISO14443A protocol cards. Its key feature is a small footprint with a separate external antenna, allowing flexible installation in space-constrained applications like access control panels, interactive advertising displays, kiosks, and information terminals. The module automatically reads and outputs card UID upon detection, communicating via a simple TTL UART interface for seamless connectivity with host controllers.

特征

Compact & Flexible Design: Ultra-small module size (23x20x5mm) with a separate IPEX antenna interface for versatile installation.
Broad Card Compatibility: Supports MIFARE, NTAG, and all ISO14443A standard cards (IC/ID).
Seamless System Integration: TTL UART interface for easy connection to microcontrollers, PCs, and other host devices. Compatible with standard Access Control systems.
Reliable & Efficient Operation: Features continuous reading mode without sleep, supports block operations, and has a stable read range of 20-30mm.
Low Power Consumption: Operates on a single 3.3V power supply.

参数

Operating Frequency: 13.56 MHz
Supported Protocols/Cards: ISO/IEC 14443 A, MIFARE, NTAG, and all ISO14443A compliant cards.
Read Range: 20 - 30 mm (dependent on card and antenna)
Power Supply: 3.3V DC
Communication Interface: TTL UART
Baud Rate: 9600 bps
Operating Mode: Continuous reading, supports block read/write operations.
Antenna Interface: IPEX connector (for external antenna)

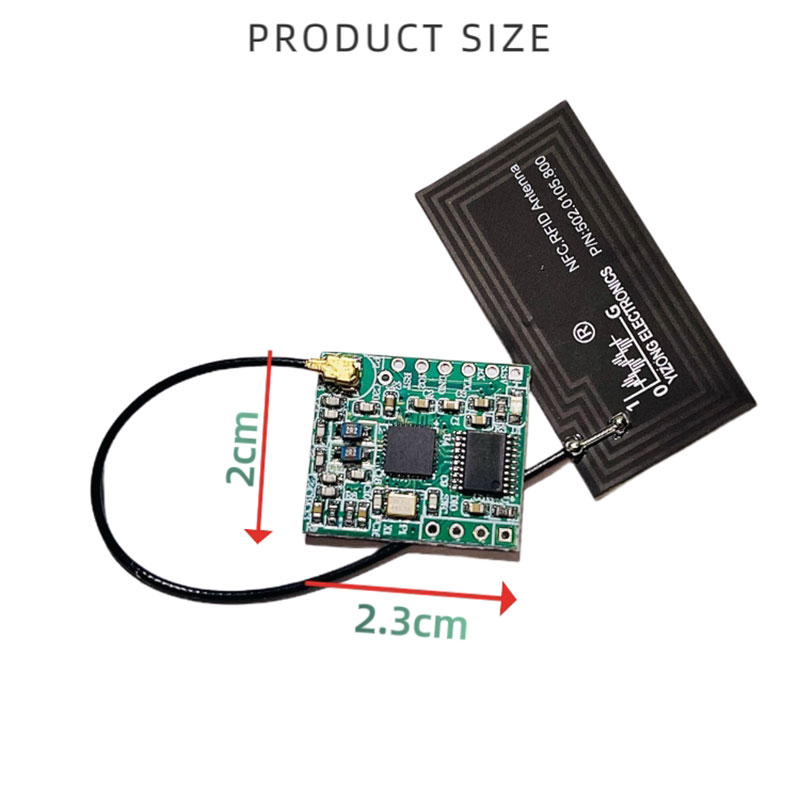

Module Dimensions: 23 mm (L) x 20 mm (W) x 5 mm (H) (excluding antenna)
Pinout:
