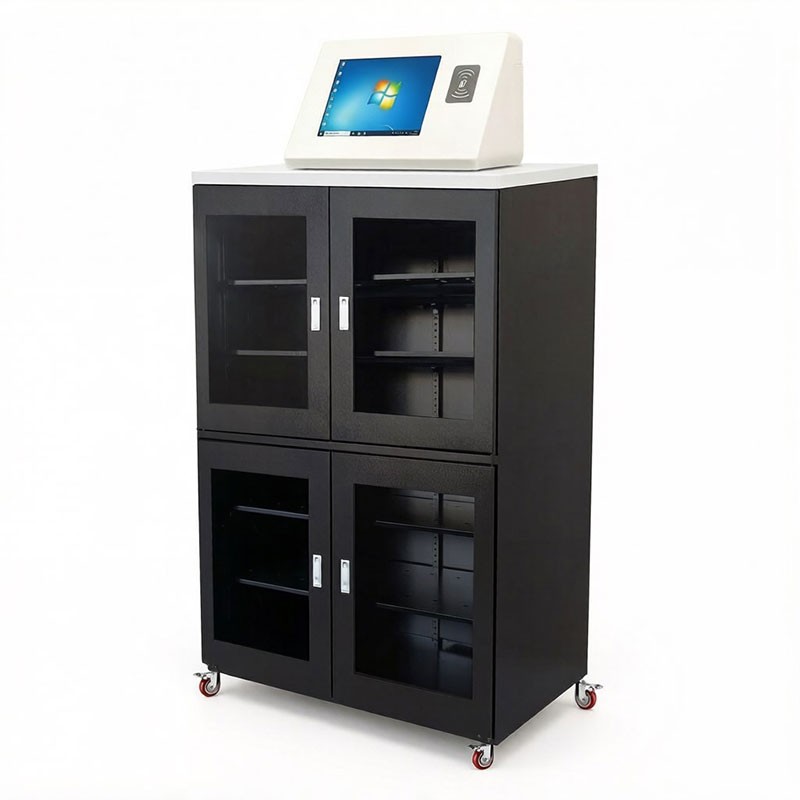

RFID-Enabled Smart Industrial Electronic Dry Cabinet for Anti-Static Components, Laboratory Dehumidification, and Material Storage

Product Specifications

• Capacity: Available in multiple standard models (e.g., 500L, 1000L, 1500L), with customizable configurations.




• Humidity Control Range: Adjustable from 5% RH to 60% RH, with a typical stable operating range of 10% RH to 50% RH.




• Humidity Accuracy: ±2% RH.




• RFID System: Supports UHF/HF RFID tag reading/writing for item and user identification.




• Display & Interface: Integrated color touchscreen for system control, data visualization, and user interaction.




• Construction: Exterior made of powder-coated steel; interior features anti-static coating. Doors are made of tempered glass for visibility.




• Mobility: Equipped with four heavy-duty casters (two locking) for easy relocation.




• Power Supply: AC 110-240V, 50/60Hz.




Core Functional Description

1. RFID-Enabled Intelligent Management: Each shelf zone is equipped with RFID Readers. By tagging items, the system enables automatic inventory tracking, instant location identification, and detailed logging of all access events (who, what, when), significantly reducing manual errors and saving time.




2. Precise & Stable Humidity Control: Utilizes a high-performance desiccant dehumidification system to rapidly achieve and maintain a user-set low-humidity environment, effectively preventing moisture absorption, oxidation, and "popcorning" in moisture-sensitive devices (MSDs).




3. Comprehensive Anti-Static (ESD) Protection: The entire internal structure, shelving, and flooring are constructed from ESD-safe materials, creating a Faraday cage-like effect to protect sensitive components from damaging electrostatic discharge during storage and handling.




4. Enhanced Usability & Monitoring:




• Full Visibility: Large transparent glass doors allow for quick visual inspection of contents without opening the cabinet and disturbing the internal environment.




• Real-Time Data & Alarms: The touchscreen displays real-time internal humidity and temperature. The system triggers visual and audible alarms for events like door-left-open, humidity deviation, or unauthorized access.




• Centralized Software (Optional): Data can be exported, and multiple cabinets can be managed via centralized PC software for enterprise-level oversight and reporting.
